Weidmuller 1025050000 KLIPPON STB 6 MS HT
- MPN: 1025050000
- PPN: WDM-1025050000
CAD
$840.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

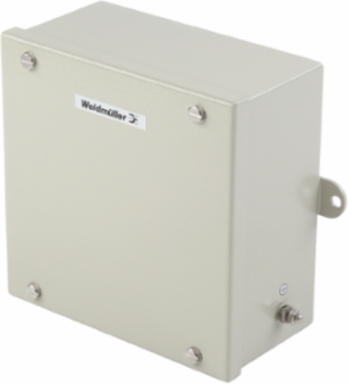

Klippon STB (Small Terminal Box), Empty enclosure, Sheet steel enclosure, Height: 250 mm, Width: 400 mm, Depth: 130 mm, Material: Sheet steel, Powder-coated, Pebble grey
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, EAC, LLOYDSREG |
|---|
| ROHS | Conform |
|---|

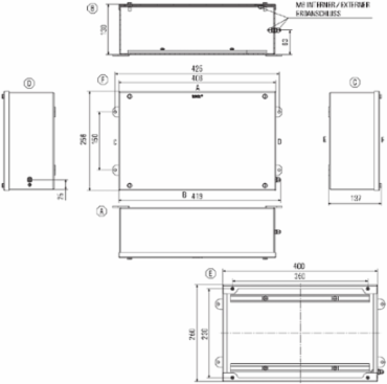

Dimensions And Weights
| Width | 400 mm |
|---|---|
| Height | 250 mm |
| Depth | 130 mm |
| Mounting dimension - width | 425 mm |
| Weight | 6,900 g |
| Width (inches) | 15.748 inch |
|---|---|
| Height (inches) | 9.842 inch |
| Depth (inches) | 5.118 inch |
| Mounting dimension - height | 150 mm |
| Net weight | 5,225 g |
Horizontal Assembly
| WDU 10 / ZDU 10 | 2x37 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 2x72 |
| WDU 6 / ZDU 6 | 2x46 |
| WDU 16 / ZDU 16 | 2x30 |
|---|---|
| WDU 4 / ZDU 4 | 2x60 |
Housing Earth
| Earth, enclosure, internal | Welded-on M6 x 16 stainless-steel bolts |
|---|
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
Vertical Assembly
| WDU 10 / ZDU 10 | 3x22 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 3x42 |
| WDU 6 / ZDU 6 | 3x27 |
| WDU 16 / ZDU 16 | 3x18 |
|---|---|
| WDU 4 / ZDU 4 | 3x35 |
Cable Glands, Top/Bottom
| M12 | 64 |
|---|---|
| M20 | 30 ???New14??? |
| M32 | 10 |
| M50 | 4 |
| M16 | 33 ???New14??? |
|---|---|
| M25 | 16 ???New14??? |
| M40 | 6 |
| M63 | 2 |
Cable Glands, Right
| M12 | 36 |
|---|---|
| M20 | 18 |
| M32 | 8 |
| M50 | 2 |
| M16 | 21 |
|---|---|
| M25 | 10 |
| M40 | 3 |
| M63 | 2 |
Cable Glands, Left
| M12 | 64 |
|---|---|
| M20 | 30 ???New14??? |
| M32 | 10 |
| M50 | 4 |
| M16 | 33 ???New14??? |
|---|---|
| M25 | 16 ???New14??? |
| M40 | 6 |
| M63 | 2 |
General Information
| Areas of use | Transportation, Marine engineering, Process industry, Packaging industry |
|---|---|
| Material thickness of enclosure | 1.5 mm |
| Seal material | Silicone |
| Operating temperature, min. | -60 °C |
| Impact resistance | 10 J version standard |
| Enclosure attachment | Welded-on mounting foot with 8-mm holes |
| Integral fixing | TAS 20 rail welded to floor |
| Material thickness | 1.5 mm |
|---|---|
| Material | Sheet steel |
| Surface finish | Powder-coated |
| Operating temperature, max. | 120 °C |
| Protection degree | IP66 |
| Lid attachment | M5 hexagonal screw with slot and 10mm distance across flats |
Certificate Numbers Enclosure
| Certificate no., assembled enclosure (EAC) | RU C-DE.ГБ08.B.01328 |
|---|---|
| Certificate No. (MARITREG) | 1.540.041.250 |
| Certificate no., empty enclosure (EAC) | RU C-DE.ГБ08.B.00472 |
|---|
