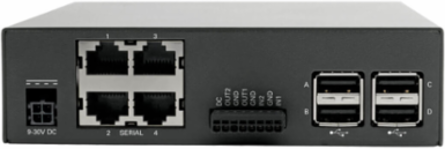

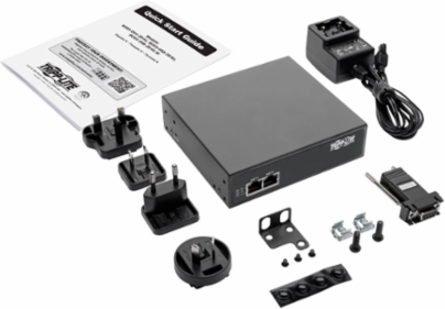

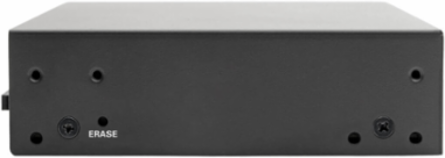

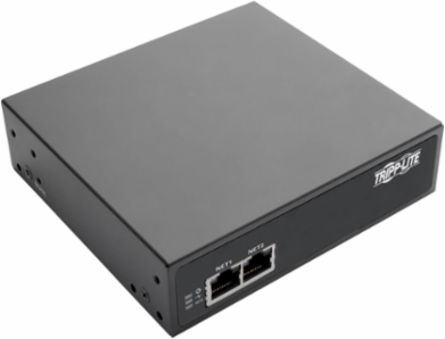

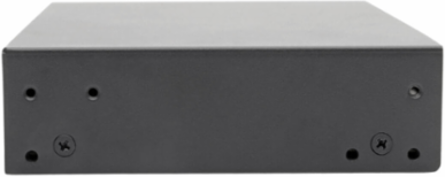

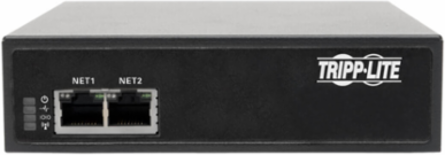

Tripp Lite B093-004-2E4U 4-Port Console Server, Dual GB NIC, USB 2.0, 1.3 lb, Rackmountable
- MPN: B093-004-2E4U
- UPC: 037332209290
- PPN: TRP-B093-004-2E4U
CAD
$1637.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
4-Port Console Server, Dual GB NIC, USB 2.0, 1.3 lb, Rackmountable
Features
- Manage routers, UPS systems and other serial-based equipment from anywhere at any time 24/7
- Validated to meet FIPS 140-2 standards to ensure utmost protection of private data
- Dual Gigabit Ethernet ports for primary network connection and automatic failover
- Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
- Easy installation on desktop or 19 in. racks using included mounting hardware
- 4-year limited warranty
- Access All Your Serial and Network Devices from Anywhere in the World
- Simple and Flexible Accessibility
- Connect an External Modem for Out-of-Band Access
- Router/Gateway
- The Utmost in Security to Keep Your Sensitive Data Private
- PowerMan PDU and UPS Support
- USB Console and Digital I/O (DIO) Ports
- Compact Design for Convenient Mounting
- TAA-Compliant for GSA Schedule Purchases
- 4-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Additional
- Ports
- 4
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- Maximum Input Amps
- 0.3 A
- External Power Supply Output
- 12 V, 1.25 A
- Storage Temperature Range
- -40 to 167 F (-40 to 75 C)
- Authentication Supported
- RADIUS, LDAP, TACACS
- Unit Dimensions (H x W x D)
- 1.4 x 5.1 x 4.7 in
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Color
- Black
- Certifications
- CE, FCC, UL, TUV, C-Tick, RoHS, REACH
Network Speed1 Gbps
Power Consumption11.5 Watts
External Power Supply Input100-240V, 50/60 Hz, 0.4 A
Operating Temperature Range-13 to 140 F (-25 to 60 C)
Relative Humidity5% to 90% RH, Non-Condensing
IEEE Standards Supported802.3, 802.3ab, 802.3ad
Weight1.3 lb
Material of ConstructionMetal
RackmountableYes
External Power Supply CertificationsCE, FCC, UL, cUL, TUV, PSE, C-Tick, GS, RoHS, CB
