Weidmuller 1492620000 KQIG-M4/S/-2,5
- MPN: 1492620000
- PPN: WDM-1492620000
CAD
$0.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

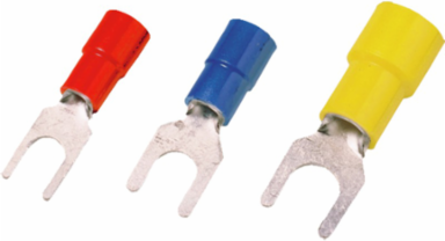

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 2.5 mm² |
|---|---|
| Connection length (I) | 18.7 mm |
| Identification colour | blue |
| Inside diameter of flange (d2) | 4.3 mm |
| Insulation | Available |
| Outside diameter of shaft (d3) | 6.8 mm |
| Conductor cross-section, min. | 1.5 mm² |
|---|---|
| Hole | C 4/S |
| Inside diameter of collar (d4) | 4.5 mm |
| Inside diameter of shaft (d1) | 2.3 mm |
| Material/plastic | PC |
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-92 |
| eClass 10.0 | 27-40-02-92 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 0.838 g |
|---|
