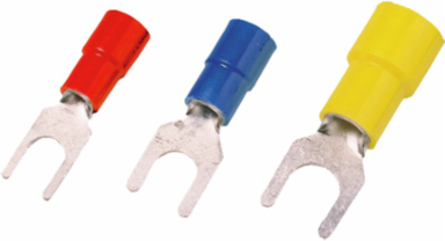

Weidmuller 1492580000 KQIG-M5/-1
- MPN: 1492580000
- PPN: WDM-1492580000
CAD
$0.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section, max.
- 1 mm²
- Connection length (I)
- 19 mm
- Identification colour
- red
- Inside diameter of flange (d2)
- 5.3 mm
- Insulation
- Available
- Outside diameter of shaft (d3)
- 10 mm
Conductor cross-section, min.0.5 mm²
HoleC 5
Inside diameter of collar (d4)4 mm
Inside diameter of shaft (d1)1.6 mm
Material/plasticPC
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 0.93 g
