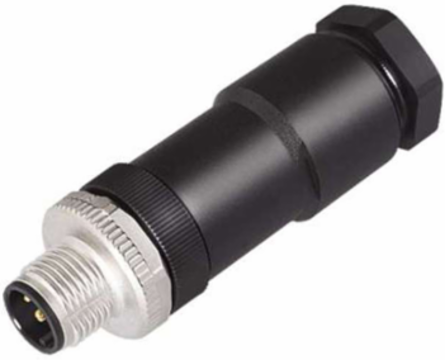

Weidmuller 1353700000 SAIS-4/11-1.5
- MPN: 1353700000
- PPN: WDM-1353700000
CAD
$13.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plugs prefabricated to customer spec., M12, pin, straight
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 25 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 10 mm |
|---|---|
| Cable glands | PG 11 |
| Connection cross-section, max. | 1.5 mm² |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 250 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Screw connection |
| Cable diameter, min. | 8 mm |
|---|---|
| Coding | A |
| Connection cross-section, min. | 0.5 mm² |
| Housing main material | PA |

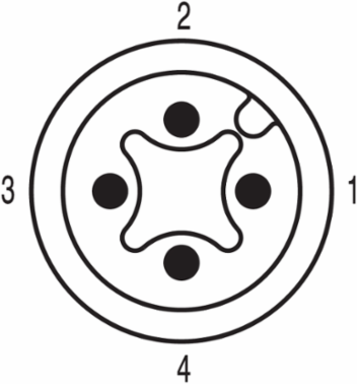

| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 8 A |
| Shield connection | No |
| Threaded ring material | Diecast zinc |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
