Weidmuller 1812480000 SAIB-4/9-7/8
- MPN: 1812480000
- PPN: WDM-1812480000
CAD
$36.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

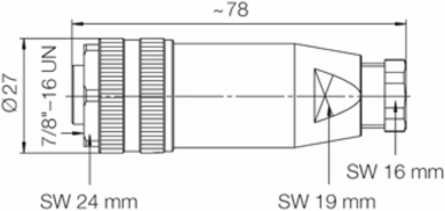

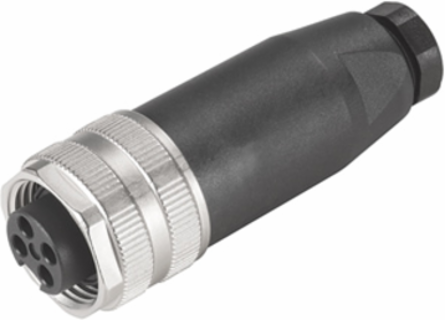

Sockets prefabricated to customer spec., 7/8", Female socket, straight
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus, EAC |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 37 g |
|---|
Standards
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
| UNSPSC | 26-12-16-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 1.5 mm² |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 50 |
| Protection degree | IP67 |
| Rated voltage | 250 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Screw connection |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | none |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | PBT |

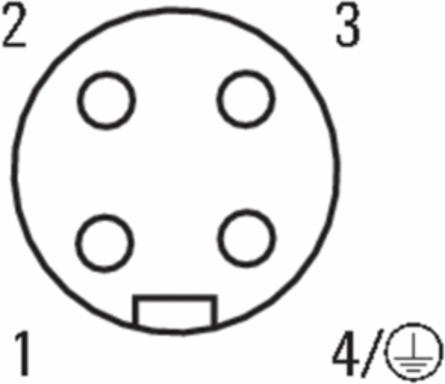

| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 9 A |
| Shield connection | No |
| Threaded ring material | Diecast zinc |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 C° |
|---|---|
| Operating temperature | -20 °C...85 C° |
| Operating temperature, min. | -20 °C |
|---|
