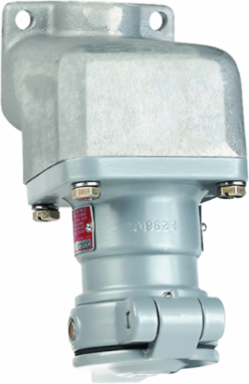

Killark KRAJC-220 Aluminum 20A Receptacle with Enclosure, 2W 3P, 115/230VAC, Hub Size 3/4 Inch
- MPN: KRAJC-220
- UPC: 783936043043
- PPN: HBL-KRAJC-220
CAD
$1865.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KRAJC Series - Aluminum 20 Amp Receptacle With Enclosure - 2W 3P Circuit- 115/230VAC At 60Hz - Hub Size 3/4 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
- Amperage Rating
- 20 A
- Nema Rating
- 7 (C, D)
- Number Of Wires
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RECEPTACLE, 20A 2W3P C1D1
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Returnable Indicator
- No
- Factory Sealed
- Factory Sealed
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- KR Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
ColorGray
Hub Size3/4"
ApplicationKR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc;KR Series receptacles use wire leads for termination.
Number Of Poles2
TypePin & Sleeve
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeR
Order Multiple1 EA
Sub Class CodeD35D260
Hub PatternFeed-Thru
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936043043
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- Contact Manufacturer
