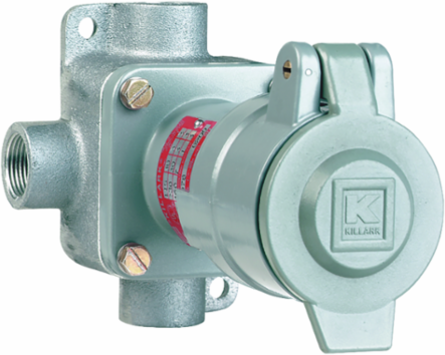

Killark KRJX-2303 Aluminum 30 Amp Receptacle - 2W 3P Circuit, Hub Size 3/4 Inch, 11.13 x 4.63 x 3.5 Inch
Killark KRJX-2303 Aluminum 30 Amp Receptacle - 2W 3P Circuit, Hub Size 3/4 Inch, 11.13 x 4.63 x 3.5 Inch
- MPN: KRJX-2303
- UPC: 783936391489
- PPN: HBL-KRJX-2303
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3039.31/ EA
Description
KRJX Series - Aluminum 30 Amp Receptacle With Enclosure - 2W 3P Circuit- 115/230VAC At 60Hz - Hub Size 3/4 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
- Hub Size
- 3/4"
- Amperage Rating
- 30 A
- Color
- Gray
- Number of Poles
- 2
- Size
- 11.13 in x 4.63 in x 3.5 in
- Type
- Pin & Sleeve
- Nema Rating
- 7 (C, D)
- Number Of Wires
- 3
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Factory Sealed
- Factory Sealed
- Hub Pattern
- Feed-Thru
- Receptacle Type
- Delayed Action
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions11.13 in x 4.63 in x 3.5 in
Height3.5 in
Length11.13 in
ApplicationKR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand
NEMA Rating7 (C, D)
Number of Wires3
Special FeaturesFactory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Width4.63 in
Number Of Poles2
ARRA CompliantContact Manufacturer
Description - InvoiceCL1 30A 2W3P REC/3/4" "X" BOX
Harmonization Code8536694020
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD35D260
Gross Weight with Packaging3.3
MaterialAluminum, Copper Free (less than 4/10 of 1%)
SeriesKR Series
Carton - SCC-14 Next Lower Level Sub Pack00783936391489
Certifications
- EU RoHS Indicator
- Contact Manufacturer
