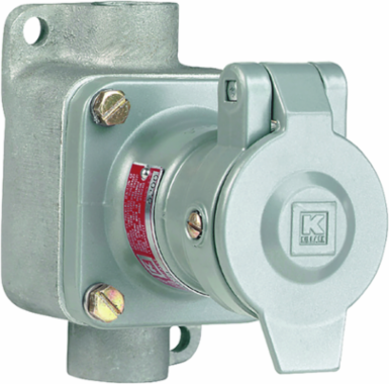

Killark KRJC-120 Aluminum 20 Amp Receptacle - 2W 3P Circuit - 115/230VAC @ 60Hz - Hub 1/2 Inch
Killark KRJC-120 Aluminum 20 Amp Receptacle - 2W 3P Circuit - 115/230VAC @ 60Hz - Hub 1/2 Inch
- MPN: KRJC-120
- UPC: 783936390925
- PPN: HBL-KRJC-120
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1568.32/ EA
Description
KRJC Series - Aluminum 20 Amp Receptacle With JLC Enclosure - 2W 3P Circuit- 115/230VAC At 60Hz - Hub Size 1/2 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- The Killark KP/KR series of plugs and receptacles provide a robust solution for applications requiring a heavy duty plug/receptacle. Plugs and receptacles may be used where devices are needed in locations made hazardous by the presence of flammable gases or vapors. The delayed action assembly ensures that the plug cannot be removed under load, preventing a dangerous arc or spark. Factory sealed construction specifies that no additional external seals are required. KP series plugs utilize soldered terminals, whereas KR series receptacles utilize wire leads for termination.
Specifications
Specifications
- Country of Origin
- US
- Hub Size
- 1/2"
- Nema Rating
- 7 (C, D)
- Number Of Wires
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CL1 20A2W3P REC/1/2"W/JLC BOX
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Factory Sealed
- Factory Sealed
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- KR Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
Amperage Rating20 A
Number Of Poles2
TypePin & Sleeve
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeR
Sub Class CodeD35D260
Hub PatternFeed-Thru
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936390925
Certifications
- EU RoHS Indicator
- Contact Manufacturer
