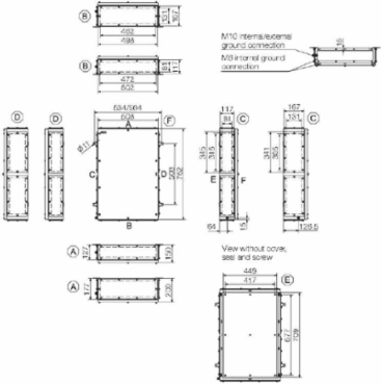

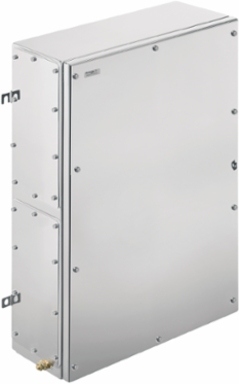

Weidmuller 1195470000 Klippon TB MH Terminal Box, 762 x 508 x 200 mm, Stainless Steel Enclosure
Weidmuller 1195470000 Klippon TB MH Terminal Box, 762 x 508 x 200 mm, Stainless Steel Enclosure
- MPN: 1195470000
- PPN: WDM-1195470000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 762 mm, Width: 508 mm, Depth: 200 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silver
Specifications
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX
- UL File Number Search
- E243298
ROHSConform
Dimensions And Weights
- Width
- 508 mm
- Height
- 762 mm
- Depth
- 200 mm
- Mounting dimension - width
- 534 mm
- Net weight
- 19,800 g
Width (inches)20 inch
Height (inches)30 inch
Depth (inches)7.874 inch
Mounting dimension - height508 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 5x42
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 7x82
- WDU 4 / ZDU 4
- 6x69
WDU 16 / ZDU 164x35
WDU 35 / ZDU 353x26
WDU 6 / ZDU 65x52
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- Minimum order quantity (5 pieces)**A customised test is required to guarantee application compliance
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 3x67
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 4x132
- WDU 4 / ZDU 4
- 4x111
WDU 16 / ZDU 162x56
WDU 35 / ZDU 352x42
WDU 6 / ZDU 63x83
Cable Glands, Top/Bottom
- M12
- 70
- M20
- 32 ???New14???
- M32
- 14 ???New14???
- M50
- 5
- M75
- 3
M1648 ???New14???
M2526 ???New14???
M4012 ???New14???
M634
Cable Glands, Right
- M12
- 96
- M20
- 40 ???New14???
- M32
- 18
- M50
- 6
- M75
- 4
M1664
M2534
M4014 ???New14???
M636
Cable Glands, Left
- M12
- 96
- M20
- 40 ???New14???
- M32
- 18
- M50
- 6
- M75
- 4
M1664
M2534
M4014 ???New14???
M636
General Information
- AF size 1
- 10 mm
- Access opening: width
- 449 mm
- Gland plates
- Bottom, top
- Material thickness
- 1.5 mm
- Material thickness of flange
- 3 mm
- Opening angle lid
- 130 °
- Position PE bolts
- Page C
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Lid attachment
- 4 hinges and M6 hex-head slotted screws SW10
Access opening: height709 mm
Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation adviceTerminal rail / mounting plate
Material thickness of cover1.5 mm
Max. payload155 kg
Overall dimensions784 x 559 x 215
StandardsDIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
MaterialStainless steel 1.4404 (316L)
Surface finishelectropolished
Operating temperature, max.135 °C
Protection degreeIP66, IP67
Enclosure attachment4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing4, 6 or 9 stud bolts M6 inner (female) thread
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (MARITREG)
- 15.40073.250
- Certificate No. (CCOE)
- CCOEP267536/1
Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 17.0020U
Certificate no. empty enclosure (NEPSI)GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X
Certificate no. (cULus)E243298
