Ilsco

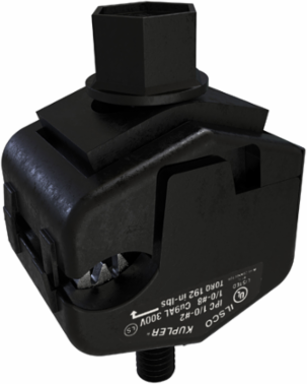

Ilsco IPC-1/0-2-B KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 1/0-8, Tap Range 2-8, Tin Plated, UL, CSA, Bag of 1

KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 1/0-8, Tap Range 2-8, Tin Plated, UL, CSA, Bag of 1
  • MPN: IPC-1/0-2-B
  • PPN: ILC-IPC-1/0-2-B

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$52.29/ EA

Specifications

Voltage

Voltage Rating
300 V (480 Grounded Y System)

Dimensions

Drive Size Main
1/2
Height BX (IN)
3.5
Length (mm)
355.6
Width BX (IN)
4.875
Drive Type MainExternal Hex
Height (mm)28.4988
Weight BX (LB)1.714
Width (mm)101.6

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL File Number
E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports Tap
1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel

Material and Finish

Clamping Hardware Finish
Tin
Conductor Material
Aluminum, Copper
Insulation
Nylon
Clamping Hardware MaterialSteel
Connector FinishTin
MaterialCopper

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
1/0 Str - 8 Str
Conductor Range CU Stranded (Primary, run, main, line)
1/0 Str - 8 Str
Conductor Range AL Stranded (Secondary, tap, load)2 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)2 Str - 8 Str

Additional Technical Specifications

Connector Amperage Rating AL (Derated where applicable)
100 Amps
Conductor Type
Stranded
Connector Amperage Rating CU (Derated where applicable)130 Amps

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedYes
UPC Code78366953284

Specifications

Height
1.122 in | 28.4988 mm
Weight
0.242 lbs
Length14 in | 355.6 mm
Width4 in | 101.6 mm

Bolt and Screw Sizes

Clamping Bolt Size
M8 x 1.25-6g
Wire Binding Screw Size
5/16
Number of Wire Binding Screws per Port1
Wire Binding Torque192

Color

Color
Black

Environment and Temperature

Temperature Rating
90°C
