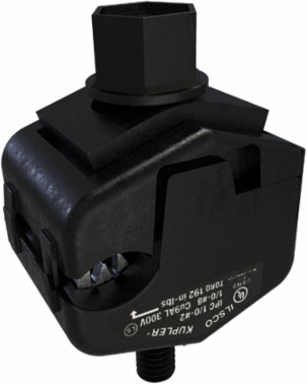

ILSCO IPC-1/0-2 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 1/0-8, Tap Range 2-8, Tin Plated, UL, CSA
- MPN: IPC-1/0-2
- UPC: 783669532661
- PPN: ILC-IPC-1/0-2
CAD
$51.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 1/0-8, Tap Range 2-8, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.122 in | 28.4988 mm
- Weight
- 0.122 lbs
Length2.351 in | 59.7154 mm
Width1.497 in | 38.0238 mm
Voltage
- Voltage Rating
- 300 V (480 Grounded Y System)
Dimensions
- Drive Size Main
- 1/2
- Height BX (IN)
- 1.75
- Length (mm)
- 59.7154
- Width BX (IN)
- 4.5
Drive Type MainExternal Hex
Height (mm)28.4988
Weight BX (LB)1.57
Width (mm)38.0238
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel
Material and Finish
- Clamping Hardware Finish
- Tin
- Conductor Material
- Aluminum, Copper
- Insulation
- Nylon
Clamping Hardware MaterialSteel
Connector FinishTin
MaterialCopper
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 8 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 8 Str
Conductor Range AL Stranded (Secondary, tap, load)2 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)2 Str - 8 Str
Additional Technical Specifications
- Connector Amperage Rating AL (Derated where applicable)
- 100 Amps
- Conductor Type
- Stranded
Connector Amperage Rating CU (Derated where applicable)130 Amps
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 12
Dual RatedYes
UPC Code78366953266
Bolt and Screw Sizes
- Clamping Bolt Size
- M8 x 1.25-6g
- Wire Binding Screw Size
- 5/16
Number of Wire Binding Screws per Port1
Wire Binding Torque192
Color
- Color
- Black
Environment and Temperature
- Temperature Rating
- 90°C
