Ilsco

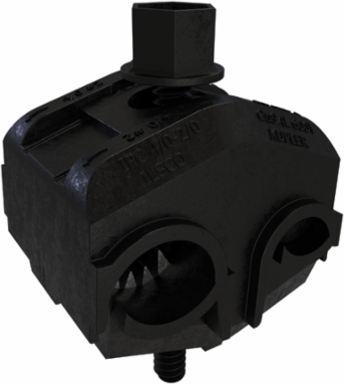

Ilsco IPC-4/0-2/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-2, Tap Range 2/0-6, Tin Plated, UL, CSA

KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-2, Tap Range 2/0-6, Tin Plated, UL, CSA
  • MPN: IPC-4/0-2/0
  • UPC: 0783669532715
  • PPN: ILC-IPC-4/0-2/0

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$67.41/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Drive Size Main
1/2
Height BX (IN)
2
Length (mm)
42.3164
Width BX (IN)
4.5
Drive Type MainExternal Hex
Height (mm)72.5932
Weight BX (LB)2.14

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL File Number
E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports Tap
1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel

Material and Finish

Clamping Hardware Finish
Tin
Conductor Material
Copper, Aluminum
Insulation
Nylon
Clamping Hardware MaterialSteel
Connector FinishTin
MaterialCopper

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
4/0 Str - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)
4/0 Str - 2 Str
Conductor Range AL Stranded (Secondary, tap, load)2/0 Str - 6 Str
Conductor Range CU Stranded (Secondary, tap, load)2/0 Str - 6 Str

Additional Technical Specifications

Connector Amperage Rating AL (Derated where applicable)
150 Amps
Conductor Type
Stranded
Connector Amperage Rating CU (Derated where applicable)195 Amps

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 8
Dual RatedYes
UPC Code78366953271

Specifications

Height
2.858 in | 72.5932 mm
Weight
0.257 lbs
Length1.666 in | 42.3164 mm
Width1.855 in

Bolt and Screw Sizes

Clamping Bolt Size
M8 x 1.25-6g
Wire Binding Screw Size
5/16
Number of Wire Binding Screws per Port1
Wire Binding Torque300

Color

Color
Black

Environment and Temperature

Temperature Rating
90°C
