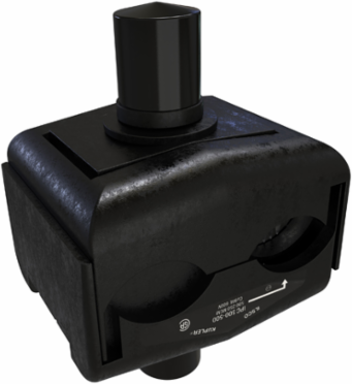

Ilsco IPC-500-500 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-300, Tap Range 500-250, Tin Plated, UL, CSA

KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-300, Tap Range 500-250, Tin Plated, UL, CSA
  • MPN: IPC-500-500
  • UPC: 0783669532807
  • PPN: ILC-IPC-500-500

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$353.38/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Drive Size Main
7/8-7/8
Height BX (IN)
3.625
Length (mm)
81.28
Width BX (IN)
4
Drive Type MainExternal Hex
Height (mm)127
Weight BX (LB)4.82
Width (mm)35.5346

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL File Number
E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports Tap
1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel

Material and Finish

Clamping Hardware Finish
Tin
Conductor Material
Aluminum, Copper
Insulation
Nylon
Clamping Hardware MaterialAlloy steel
Connector FinishTin
MaterialCopper

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
500 kcmil - 300 kcmil
Conductor Range CU Stranded (Primary, run, main, line)
500 kcmil - 300 kcmil
Conductor Range AL Stranded (Secondary, tap, load)500 kcmil - 250 kcmil
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 250 kcmil

Additional Technical Specifications

Connector Amperage Rating AL (Derated where applicable)
350 Amps
Conductor Type
Stranded
Connector Amperage Rating CU (Derated where applicable)430 Amps

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366953280

Specifications

Height
5 in | 127 mm
Weight
4.721 lbs
Length3.2 in | 81.28 mm
Width1.399 in | 35.5346 mm

Bolt and Screw Sizes

Clamping Bolt Size
1/2-13
Wire Binding Torque
900
Number of Wire Binding Screws per Port1

Color

Color
Black

Environment and Temperature

Temperature Rating
90°C
