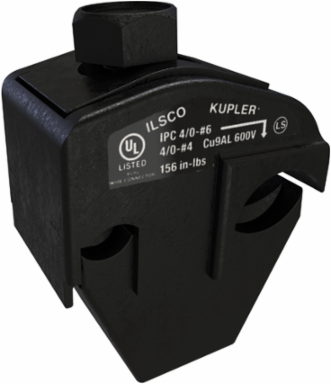

ILSCO IPC-4/0-6 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-4, Tap Range 6-14, Tin Plated, UL, CSA
- MPN: IPC-4/0-6
- UPC: 783669532692
- PPN: ILC-IPC-4/0-6
CAD
$83.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-4, Tap Range 6-14, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V
- Connector Amperage Rating Aluminum
- 60 Amps
- Conductor Range Copper Primary (Main)
- 4/0 Str - 4 Str
- Conductor Range Aluminum Primary (Main)
- 4/0 Str - 4 Str
- Number of Conductors
- 2
- Number of Ports Tap
- 1
- Drive Size Main
- 1/2 in
- Height
- 1.928 in
- Width
- 1.431 in
- Max Insulation OD
- 0.615 in
- Wire Binding Screw Size
- 5/16
- Material
- Copper
- Clamping Hardware Finish
- Tin
- Insulation Material
- Nylon
- CSA Standard
- C22.2 No. 65-03
- UL / CULUS Specification
- UL 486A/B Listed
- RoHS
- Compliant
- Prop65 Compliance
- Prop 65 Warning
- Color
- Black
Connector Amperage Rating Copper75 Amps
Temperature Rating90C
Conductor Range Copper Secondary (Tap, Load)6 Str - 14 Str
Conductor Range Aluminum Secondary (Tap, Load)6 Str - 14 Str
Number of Poles1
Wire OrientationParallel
Drive Type MainExternal Hex
Length1.118 in
Weight0.252 lb
Clamping Bolt Size5/16-18
Wire Binding Torque156 lb-in
Clamping Hardware MaterialSteel
Connector FinishTin
Conductor MaterialCopper, Aluminum
CSA File NumberLR-29601
NEMA CodeS-588-4
Dual RatedYes
Direct BurialNo
