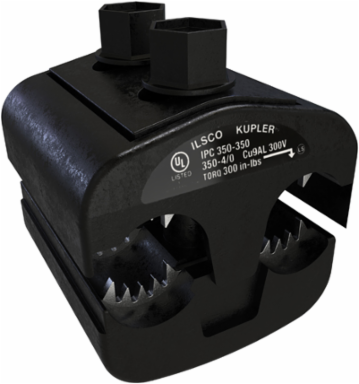

ILSCO IPC-350-350 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 350-4/0, Tin Plated, UL, CSA
- MPN: IPC-350-350
- UPC: 783669532760
- PPN: ILC-IPC-350-350
CAD
$193.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 350-4/0, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.195 in | 81.153 mm
- Weight
- 0.963 lbs
Length2.67 in | 67.818 mm
Width2.691 in
Voltage
- Voltage Rating
- 300 V (480 Grounded Y System)
Dimensions
- Drive Size Main
- 5/8
- Height BX (IN)
- 2.75
- Length (mm)
- 67.818
- Width BX (IN)
- 5
Drive Type MainExternal Hex
Height (mm)81.153
Weight BX (LB)3.95
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel
Material and Finish
- Clamping Hardware Finish
- Tin
- Conductor Material
- Copper, Aluminum
- Insulation
- Nylon
Clamping Hardware MaterialSteel
Connector FinishTin
MaterialCopper
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 350 kcmil - 4/0 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil - 4/0 Str
Conductor Range AL Stranded (Secondary, tap, load)350 kcmil - 4/0 Str
Conductor Range CU Stranded (Secondary, tap, load)350 kcmil - 4/0 Str
Additional Technical Specifications
- Connector Amperage Rating AL (Derated where applicable)
- 280 Amps
- Conductor Type
- Stranded
Connector Amperage Rating CU (Derated where applicable)350 Amps
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 4
Dual RatedYes
UPC Code78366953276
Bolt and Screw Sizes
- Clamping Bolt Size
- M10 x 1.5-6g
- Wire Binding Screw Size
- 7/16
Number of Wire Binding Screws per Port2
Wire Binding Torque300
Color
- Color
- Black
Environment and Temperature
- Temperature Rating
- 90°C
