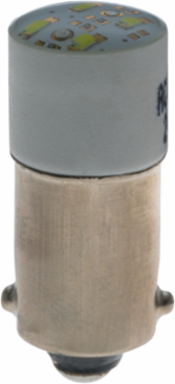

Schmersal 101030894 LE24/9WS LED Light Terminal Block, 24 mm Length, 10 mm Width, 24 VDC
- MPN: 101030894
- PPN: SCM-101030894
CAD
$44.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LE24/9WS LED Light Terminal Block, 24 mm Length, 10 mm Width, 24 VDC
Documentation & Downloads
Specifications
Key Specifications
- Length
- 24 mm
Width10 mm
Electrical data
- Rated operating voltage
- 24 VDC
Mechanical data - Dimensions
- Width
- 10 mm
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- LED with Ba9S connector
- Enclosure material
- Nickel plated brass
VersionsIlluminant
Installation conditions (mechanical)arbitrarily
Gross weight1 g
Ambient conditions
- Degree of protection of clips or terminals
- IP20
Ambient temperature-10 ... +55 °C
Mechanical data - Connection technique
- Termination
- BA9S
Mechanical data
- Installation instructions
- bayonet
Mounting flange position3
Status indication
- Colour of the LED
- White
Note (LED switching conditions display)Ba9S - Base
