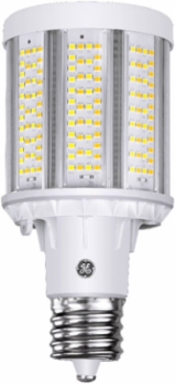

Current Lighting Solutions 93314601 LED TYPE B HID ED23.5 Replacement Lamps
- MPN: 93314601
- UPC: 662049525557
- PPN: GEL-93314601
- UNSPSC: 39112102
CAD
$77.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED TYPE B HID Passive Selectable ED23.5 Replacement Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamps for multiple applications
- Passive cooling (no fan) with electronic thermal management
- LumenChoice Selectable lumens and SpectraChoice Selectable color temperature using built-in switches
- In-line fuse and fixture label included
- 50,000 hour life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- EX39
- CCT (K)
- 3000 K/4000 K/5000 K
- CRI
- 70 CRI
- Dimmable
- Do not use with phase-cut dimmers. Use integrated switch for dimming.
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 198.12
- Location Rating
- Damp; Enclosed
- Lumen Range
- 5,000 lm/6,300 lm/7,500 lm
- MOL (In)
- 7.8 in
- Operating Temperature
- -40 to 50 °C
- Safety Certification
- cULus
- Suggested Traditional Replacement
- HID; HPS/MH
- UL Type A, B, C
- Type B
- Warranty
- 5 year limited warranty
Base TypeEX39
Bulb ShapeED23.5
Connect Family NameLED TYPE B HID ED23.5 Replacement Lamps
Diameter3.7 in
Efficacy (LPW)156 LPW/162 LPW/163 LPW
CategoryLED HID
Lensing DescriptionOmnidirectional
Lumen Maintenance RatingL70 @ 50,000 hours
Lumens5,000 lm/6,300 lm/7,500 lm
Operating Life (Hrs)50,000 hr
Optical DistributionOmnidirectional
SAP Material Number93314601
Technology TypeLED
Voltage (V)120-277 V
Wattage32 W; 39 W; 42 W
