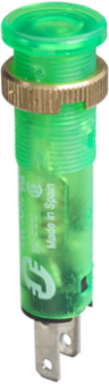

Green LED Pilot Light, 8mm, IP40/IP65, 12V, Faston
Schneider Electric

Schneider Electric XVLA223 Green LED Pilot Light, 8mm, IP40/IP65, 12V, Faston

  • MPN: XVLA223
  • PPN: SCH-XVLA223

CAD

$10.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony XVLA223 is a green pilot light diameter 8mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 12V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Spain, France
Depth36 mm

Important Information Attributes

Overvoltage Category
class 3 conforming to IEC 60536, class 3 conforming to NF C 20-030
Certificate Agency
UL, CSA
Terminals Description Iso N°1
(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0 kg CO2 eq., 0.0044653974
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0 kg CO2 eq., 0.019255062
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Product Kit Identifier
N
Component Name
XVL
Light Source
covered LED
Nominal Voltage Limit
0.8...1.1 Un
Product Or Component Type
LED pilot light with integral lens cap
Range Of Product
Harmony XVL
Software Version
v5.9.4
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
XVLA Pilot light degree of protection is IP40/IP65 (with seal). It has covered LED included 24V, lugs connection.This pilot light power consumption is 0.432W with 71% active mode for 10 years and it product complies with IEC 60947-1 standards..
Functional-unit Unit
Unit
Energy Consumption On Product Lifetime, In Kwh
14.31
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Height Nominal
10 mm
[Ui] Rated Insulation Voltage
50 V IEC 60947-1
Nbr. Of Units In Pkg.
1
Take-back
No
Protection Typeintegral ballast resistor, built-in by diode
Connections - Terminalstag for Faston connectors 2.8 x 0.5 mm, tag for soldering connectors
Carbon Footprint Of The Distribution Phase [A4]0.0003922937, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000988879, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]6 kg CO2 eq., 6.0608801209
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bulb Lifespan100000 h
Current Consumption18 mA
Mounting Diameter8 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Supply Circuit TypeDC
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Pep CodeENVPEP2312029EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %19
Width Nominal10 mm
[Us] Rated Supply Voltage12 V
Package Weight(Lbs)2.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Ip Degree Of Protection
IP40 NF C 20-010IP65 IEC 60529 with seal XVLZ911), IP65 NF C 20-010 with seal XVLZ911), IP40 IEC 60529
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI2312029EN
Eu Rohs Directive
Compliant By Exemption
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP2312029EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint6.0850917619
Environmental DisclosureENVPEP2312029EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
LED pilot light with integral lens cap
Range Of ProductHarmony XVL

ETIM

ETIM 8
EC000272
ETIM 9EC000272

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
