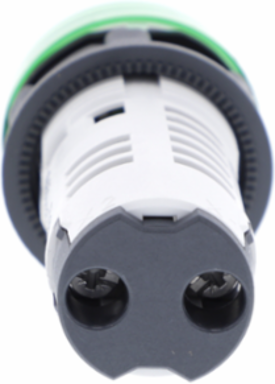

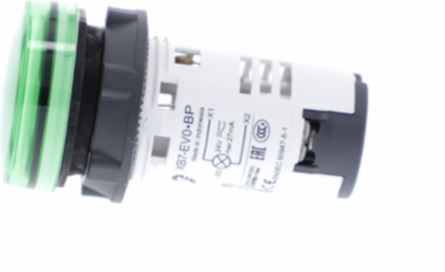

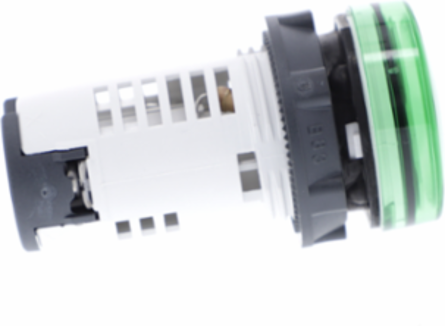

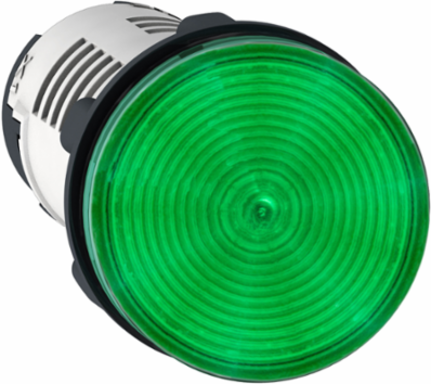

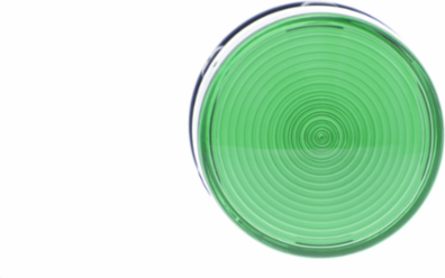

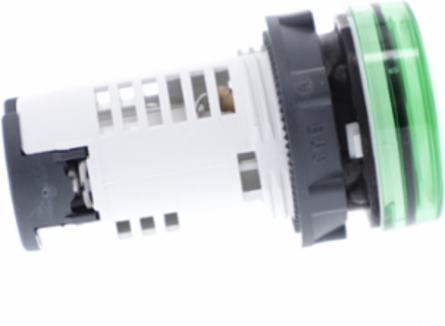

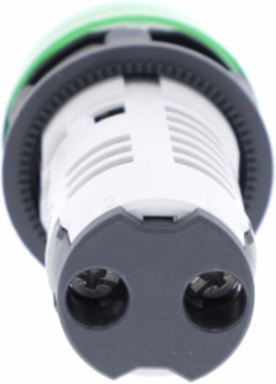

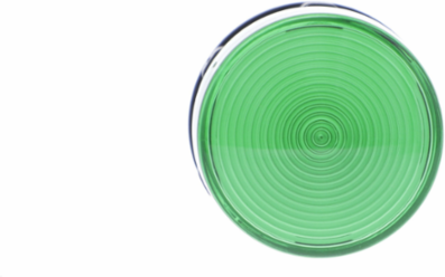

Schneider Electric XB7EV03BP Monolithic Green Pilot Light 22mm, 24V AC/DC, IP65, Integral LED

MPN: XB7EV03BP
PPN: SCH-XB7EV03BP

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$65.20

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB7, plain lens monolithic green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

Engineered as a single, pre-assembled monolithic unit, this standard 22mm pilot light completely eliminates the frustrating, time-consuming need to piece together separate light modules and mounting collars. This streamlined, all-in-one footprint drops seamlessly into any standard industrial push-button enclosure, dramatically reducing labor time and simplifying component inventory for high-volume control panel builders.
Featuring a high-intensity, vibration-resistant integral green LED, this 24V AC/DC pilot light delivers high-contrast status indication that remains easily visible across sprawling manufacturing floors. Relying on solid-state LED technology guarantees up to 100,000 hours of continuous service life, eliminating the hidden maintenance costs and machinery downtime associated with constantly tracking down and replacing burnt-out incandescent bulbs.
Built to withstand the harshest operating environments, the front face of this Harmony XB7 indicator is fully IP65 and NEMA 4X rated against fine dust ingress and low-pressure water jets. This rugged environmental sealing ensures perfectly reliable performance on outdoor automation equipment or food processing lines requiring strict sanitation washdowns, protecting your expensive internal circuitry from catastrophic moisture damage.
Equipped with deeply threaded, captive screw clamp terminals, this indicator light guarantees a rock-solid electrical connection that will not degrade under the constant vibration of heavy-duty motor control centers. This highly secure termination method easily accepts standard stripped wires or ferrules, providing facility maintenance technicians with a fast, fault-proof installation that prevents dangerous arcing and intermittent system failures.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore, United States

Depth	54 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate Agency	UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-1
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.050772, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.37607
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312030EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bulb Base	integral LED
Current Consumption	20...27 mA
Electromagnetic Compatibility	disturbing field emission class B conforming to IEC 55011
Light Source	LED
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	pilot light
Range Of Product	Harmony XB7
Sale Per Indivisible Quantity	10
Shape Of Signaling Unit Head	round
Signalling Type	steady
Supply Voltage Limits	19.2-30 V DC21.6-26.4 V AC
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2312030EN
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Reference Lifetime In Y	10
Recyclability Potential In %	15
Width Nominal	29 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Package Weight(Lbs)	18.000 g
Warranty (In Months)	18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]	23.137
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]	0.038
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	84.581
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]	1.0592
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]	10.369
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	6.1785
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	425.61
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	482.83
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	0.1422
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	5.54
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	425.61
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Shape Of Screw Head	cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Us] Rated Supply Voltage	24 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]	0.0027275, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.000072469
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	23 kg CO2 eq., 23.137
Local Publishable Date	2026-03-26
Stocking Flag	N
Use Carbon Footprint	23.137
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	XB7
Device Short Name	XB7
Fixing Mode	fixing nut beneath head 2-2.4 N.m

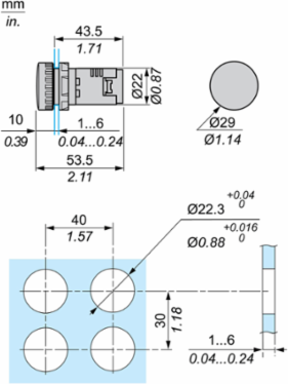

Mounting Diameter	22 mm
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Service Life	70000 h at rated voltage and 25 °C
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	24 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XB7 monolithic green pilot light uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel.
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; ID
Height Nominal	29 mm
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
Cap/Operator Or Lens Colour	green
Nbr. Of Units In Pkg.	1
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]	23.122
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	6.1785
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	425.61
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	340.55
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	0.3399
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	3.6463
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]	0.038
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	6.3207
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	0.701
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	57.22
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]	0.038
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	57.22

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 4 UL 50 E, NEMA 12 UL 50 E, UL type 4/12
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2312030EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312030EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	23.566641969
Environmental Disclosure	ENVPEP2312030EN
Ip Degree Of Protection	IP20 IEC 60529 rear face)IP65 IEC 60529 front face)
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
