Schneider Electric XVLA235 Harmony XVL 8mm Yellow LED Pilot Light, 24V DC, IP65 Protection

MPN: XVLA235
PPN: SCH-XVLA235
UNSPSC: 39121534

$10.94

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

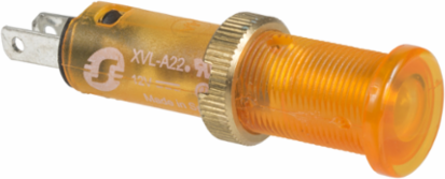

This Harmony XVLA235 is a yellow pilot light diameter 8mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 24V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.

Features

Modular design allows flexible and simple setup for compatible product
Wide availability throughout an extensive distribution network
Strong robustness and harsh envrionment protection
Full fonction solution fit to customer needs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Depth	36 mm

Weight	3 g

Complementary Attributes

Ui Rated Insulation Voltage	50 V IEC 60947-1

Us Rated Supply Voltage	24 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Overvoltage Category	class 3 conforming to IEC 60536, class 3 conforming to NF C 20-030
Connections Terminals	tag for Faston connectors 2.8 x 0.5 mm, tag for soldering connectors
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0044653974
Carbon Footprint Of The Manufacturing Phase A1 To A3	0 kg CO2 eq., 0.019255062
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Component Name	XVL
Light Source	covered LED
Nominal Voltage Limit	0.8...1.1 Un
Product Or Component Type	LED pilot light with integral lens cap
Range Of Product	Harmony XVL
Sale Per Indivisible Quantity	10
Supply Circuit Type	DC
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Database Version	2022-01
Height Nominal	10 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Protection Type	built-in by diode, integral ballast resistor
Certificate Agency	CSA, UL
Carbon Footprint Of The Distribution Phase A4	0.0003922937, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0000988879, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.2 kg CO2 eq., 0.1602816901
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312029EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bulb Lifespan	100000 h
Current Consumption	18 mA
Mounting Diameter	8 mm
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	10 mm
Customs Code	8531809051
Functional Unit Description	XVLA Pilot light degree of protection is IP40/IP65 (with seal). It has covered LED included 24V, lugs connection.This pilot light&nbsp;power consumption is 0.432W with 71% active mode for 10 years and it product&nbsp;complies with IEC 60947-1 standards..
Functional Unit Unit	Unit
Recyclability Potential In %	19

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP40 NF C 20-010IP65 IEC 60529 with seal XVLZ911), IP65 NF C 20-010 with seal XVLZ911), IP40 IEC 60529
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312029EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2312029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.1844933311
Environmental Disclosure	ENVPEP2312029EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
