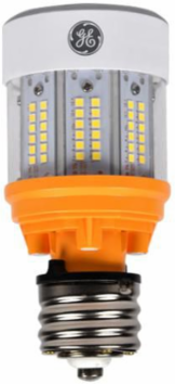

Current Lighting Solutions 93134832 LED Type B HID ED17 Hazardous Replacement Lamps
- MPN: 93134832
- UPC: 662049500363
- PPN: GEL-93134832
- UNSPSC: 39112102
CAD
$294.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Type B HID ED17 Hazardous Replacement Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamp for multiple applications
- E39 socket adapter, wire connectors and fixture label included
- 50,000 hour life with 5 limited year warranty
- GE Filtr-Gard™, Crouse-Hinds Champ® VMV, Appleton™ Mercmaster™ II Series, Appleton™, Mercmaster™ III Series
- Refineries, drilling rigs, petrochemical facilities, food and beverage facilities, and other heavy industrial areas where flammable vapors, gases, ignitable dusts, fibers or flying's are present.
- Each hazardous location lamp comes with an E39 socket adapter for Mogul base applications. This reduces SKU counts and ensures an easy installation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- E26/EX39
- CCT (K)
- 3000 K
- CRI
- 70 CRI
- Dimmable
- Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 137.16
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- Lumens
- 3,000 lm
- Operating Life (Hrs)
- 50,000 hr
- Optical Distribution
- Omnidirectional
- SAP Material Number
- 93134832
- Technology Type
- LED
- Voltage (V)
- 120-277 V
- Wattage
- 21 W
Base TypeE26/EX39
Bulb ShapeED17
Connect Family NameLED Type B HID ED17 Hazardous Replacement Lamps
Diameter2.6 in
Efficacy (LPW)143 LPW
CategoryLED HID
Location RatingDamp
Lumen Range3,000 lm
MOL (In)5.4 in
Operating Temperature-20 to 65 °C
Safety CertificationcULus
Suggested Traditional ReplacementHID; HPS/MH
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
