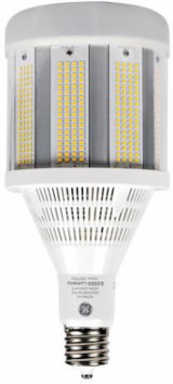

LED HID TYPE B BT56 Lamps
Current Lighting Solutions

Current Lighting Solutions 93095547 LED HID TYPE B BT56 Lamps

  • MPN: 93095547
  • UPC: 043168500609
  • PPN: GEL-93095547
  • UNSPSC: 39112102

CAD

$564.39

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

LED HID TYPE B BT56 Lamps

Features

  • Direct wire to bypass the ballast which reduces energy use and eliminates ballast compatibility
  • Match ANSI standard shape
  • One lamp for multiple applications
  • Tether kit, in-line fuse, fixture label, and horizontal support kit included
  • 50,000 hour life with 5 limited year warranty
  • Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China
Bulb Base Type
EX39
CCT (K)
4000 K
CRI
70 CRI
Dimmable
Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
Family Optics/Distribution Offering
Omnidirectional
Length Metric
312.42
Lumen Maintenance Rating
L70 @ 50,000 hours
Lumens
40,000 lm
Operating Life (Hrs)
50,000 hr
Optical Distribution
Omnidirectional
SAP Material Number
93095547
Technology Type
LED
Voltage (V)
277-480 V
Wattage
270 W
Base TypeEX39
Bulb ShapeBT56
Connect Family NameLED TYPE B HID BT56 Replacement Lamps
Diameter5.6 in
Efficacy (LPW)148 LPW
CategoryLED HID
Location RatingDamp
Lumen Range40,000 lm
MOL (In)12.3 in
Operating Temperature-40 to 50 °C
Safety CertificationcULus
Suggested Traditional ReplacementHID
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
