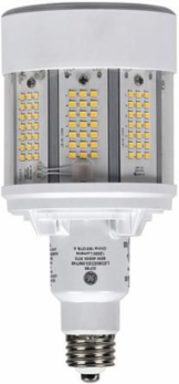

Current Lighting Solutions 22679 LED HID TYPE B ED23.5 Lamps
Current Lighting Solutions 22679 LED HID TYPE B ED23.5 Lamps
- MPN: 22679
- UPC: 043168226790
- PPN: GEL-22679
- UNSPSC: 39112102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$134.81/ EA
Description
LED HID TYPE B ED23.5 Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamp for multiple applications
- In-line fuse and fixture label included
- 50,000 hour life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
Specifications
Specifications
- Country of Origin
- China
- Bulb Base Type
- EX39
- CCT (K)
- 4000 K
- CRI
- 70 CRI
- Dimmable
- Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 198.12
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- Lumens
- 7,500 lm
- Operating Life (Hrs)
- 50,000 hr
- Optical Distribution
- Omnidirectional
- SAP Material Number
- 22679
- Technology Type
- LED
- Voltage (V)
- 120-277 V
- Wattage
- 50 W
Base TypeEX39
Bulb ShapeED23.5
Connect Family NameLED TYPE B HID ED23.5 Replacement Lamps
Diameter3.7 in
Efficacy (LPW)150 LPW
CategoryLED HID
Location RatingDamp
Lumen Range7,500 lm
MOL (In)7.8 in
Operating Temperature-40 to 50 °C
Safety CertificationcULus
Suggested Traditional ReplacementHID
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
