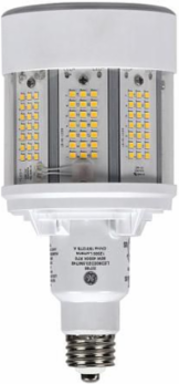

Current Lighting Solutions 93125008G LED TYPE B HID ED23.5 Replacement Lamps
- MPN: 93125008G
- UPC: 043168518543
- PPN: GEL-93125008G
- UNSPSC: 39112102
CAD
$182.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED TYPE B HID ED23.5 Replacement Lamps
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Match ANSI standard shape
- One lamps for multiple applications
- Tether kit, in-line fuse, and fixture label included
- 50,000 hr life with 5 limited year warranty
- Current's LED HID replacements are an exact ANSI profile match to existing HID lamps. This ensures a like for like replacement, which reduces installation issues and downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- E26
- CCT (K)
- 5000 K
- CRI
- 70 CRI
- Dimmable
- Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
- Family Optics/Distribution Offering
- Omnidirectional
- Length Metric
- 198.12
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- Lumens
- 12,000 lm
- Operating Life (Hrs)
- 50,000 hr
- Optical Distribution
- Omnidirectional
- SAP Material Number
- 93125008G
- Technology Type
- LED
- Voltage (V)
- 120-277 V
- Wattage
- 80 W
Base TypeE26
Bulb ShapeED23.5
Connect Family NameLED TYPE B HID ED23.5 Replacement Lamps
Diameter3.7 in
Efficacy (LPW)150 LPW
CategoryLED HID
Location RatingDamp
Lumen Range12,000 lm
MOL (In)7.8 in
Operating Temperature-40 to 50 °C
Safety CertificationcULus
Suggested Traditional ReplacementHID; HPS/MH
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
