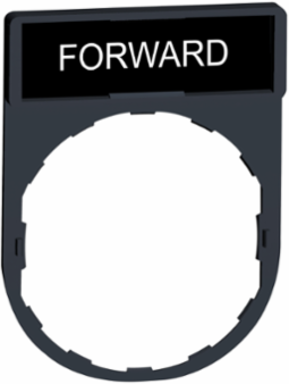

Schneider Electric ZBY2305 Legend Holder 30 x 40 mm with "FORWARD" Marking for Harmony XB4/XB5
- MPN: ZBY2305
- PPN: SCH-ZBY2305
CAD
$3.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZBY legend holder has black or red background and is marked with "FORWARD" lettering. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Legend Holder Size
- 30 x 40 mm
Important Information Attributes
- Customizable
- 0, no
- Accessory Destination
- Ø 22 mm control or signalling unit, for standard head
- Carbon Footprint Of The Distribution Phase [A4]
- 0.005508526866382332, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00001143469128242425, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Marking
- white FORWARD 1 black side, 1 red side
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- User Language
- English
- Marking 1 Background Color
- 1 black side, 1 red side
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- ZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights.This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with emergency stop or switching off unit. It provides clear and resilient symbol marking on the label with high contrast.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Accessory / Separate Part Category
- marking accessory
- Package Weight(Lbs)
- 0.900 g
- Warranty (In Months)
- 18
Device Compositionlegend holder, marked legend
Accessory / Separate Part DestinationØ 22 mm control or signalling unit, for standard head
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.019618573694546445
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.04851772347072339
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Materialplastic
Product Or Component Typelegend holder
Software Versionv6.3.0.1-18
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Marking 1 MarkingFORWARD
Pep CodeENVPEP2506048EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909985
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.07365625872293459
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2506048EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506048EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- legend holder
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
