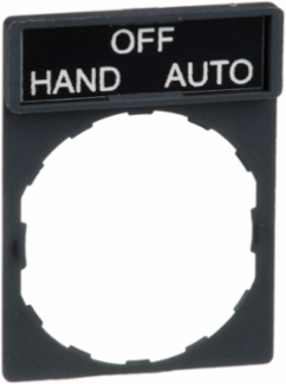

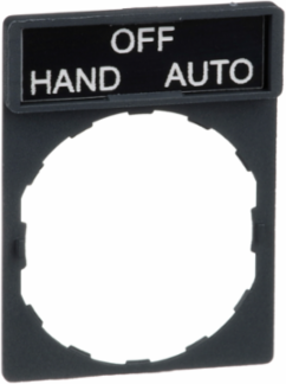

Schneider Electric ZBY2387 Harmony XB4 Legend Holder 30 x 40mm with HAND-OFF-AUTO Marking
- MPN: ZBY2387
- PPN: SCH-ZBY2387
CAD
$3.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- Specifically designed for the Schneider Electric Harmony XB4 and XB5 series 22mm pilot devices, this 30 x 40 mm legend plate provides a secure, flush fit. This precision-engineered accessory ensures a professional, factory-finished look for your control stations while maintaining the ergonomic spacing required for complex industrial operator interfaces.
- Featuring high-contrast white lettering on a crisp black background, this legend plate provides unmistakable visual clarity for operators managing manual or automated systems. The engraving is designed to resist fading and abrasion in high-traffic areas, ensuring that critical "Hand-Off-Auto" positions remain legible to prevent operation errors and improve workplace safety.

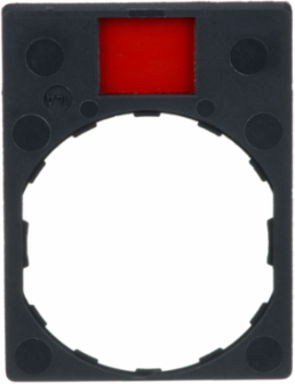

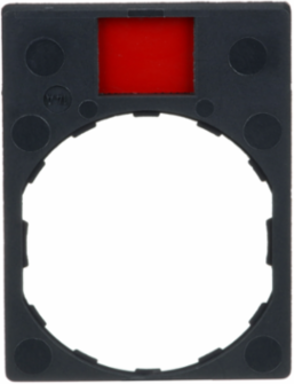

- This versatile legend plate features one black side and one red side, allowing you to choose the background color that best suits your panel design or safety protocol. Whether you need the standard industrial black or the high-visibility red for quick identification, this reversible design provides the flexibility to match your specific customer requirements without needing multiple parts.
- Built from high-quality, chemical-resistant plastic, the ZBY2387 is engineered to survive in demanding industrial conditions, including areas prone to dust, moisture, and extreme temperatures ranging from -25 C to +70 C. When paired with IP66 or IP69K rated Harmony units, it maintains the integrity of your enclosure s seal, protecting internal components from ingress during high-pressure cleaning.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Legend Holder Size
- 30 x 40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Accessory Destination
- Ø 22 mm control or signalling unit, for standard head
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Material
- plastic
- Product Or Component Type
- legend holder
- Sustainable Packaging
- No
- Marking 1 Marking
- HAND-OFF-AUTO
- Pep Code
- ENVPEP2506048EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3926909985
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Device Compositionmarked legend, legend holder
Accessory / Separate Part DestinationØ 22 mm control or signalling unit, for standard head
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Markingwhite HAND-OFF-AUTO 1 black side, 1 red side
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
User LanguageEnglish
Marking 1 Background Color1 black side, 1 red side
Accessory / Separate Part Categorymarking accessory
Package Weight(Lbs)0.900 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2506048EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506048EN
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- legend holder
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
