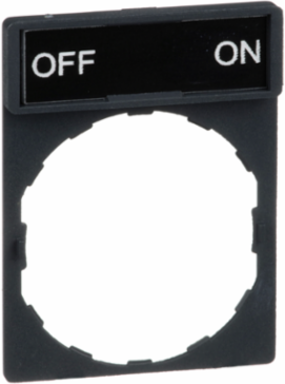

Schneider Electric ZBY2367 Harmony XB4 Legend Holder 30 x 40 mm, Plastic, Marked OFF-ON

MPN: ZBY2367
PPN: SCH-ZBY2367

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$3.28

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

This standard 30 x 40 mm legend holder is fully compatible with all standard 22mm diameter operator heads, specifically engineered for seamless integration with Schneider Electric s Harmony XB4 metal and XB5 plastic series pushbuttons and pilot lights. Installing this ensures an exact mechanical fit without requiring panel modifications or risking loose component alignment.
Manufactured from premium industrial-grade plastic, this rugged legend holder is designed to withstand the physical demands of high-traffic control panels, manufacturing plants, and commercial facilities. The resilient dark grey frame offers excellent protection against environmental wear, ensuring your labeling layout remains intact and operational over years of heavy cycling.

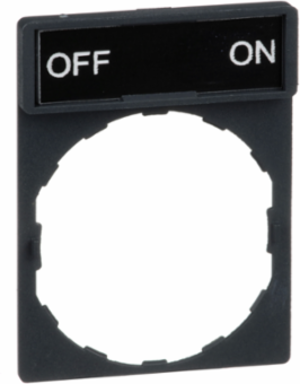

Featuring high-contrast white lettering engraved on an 8 x 27 mm insert, this legend plate guarantees crisp visibility for machine operators, reducing human error and improving operational safety. The English-language "OFF-ON" marking provides instantaneous visual confirmation of device state, helping your facility maintain strict safety and regulatory compliance.
Designed with a reversible dual-color insert, this marking accessory features a white "OFF-ON" legend printed on a black background on one side and a red background on the reverse. This innovative design allows panel builders and electricians to quickly adapt the color scheme to meet specific client preferences or distinct safety coding standards without ordering separate inventory.
This accessory features a lightweight, 0.002 kg flat-profile design that slips directly over the standard 22mm cutout during pushbutton assembly, securing firmly once the operator head is tightened down. This effortless installation process saves industrial automation engineers and electrical contractors significant assembly time during large-scale panel deployment and maintenance overhauls.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Mexico, United States

Physical Attributes

Legend Holder Size	30 x 40 mm

Main Color Tint	dark grey

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Accessory Destination	Ø 22 mm control or signalling unit, for standard head
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Material	plastic
Product Or Component Type	legend holder
Sustainable Packaging	No
Main Color Tint	dark grey
Marking 1 Background Color	1 black side, 1 red side
Accessory / Separate Part Category	marking accessory
Package Weight(Lbs)	1.200 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Device Composition	legend holder, marked legend
Accessory / Separate Part Destination	Ø 22 mm control or signalling unit, for standard head
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Marking	white OFF-ON 1 black side, 1 red side
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
User Language	English
Marking 1 Marking	OFF-ON
Pep Code	ENVPEP2506048EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909985

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2506048EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506048EN

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
