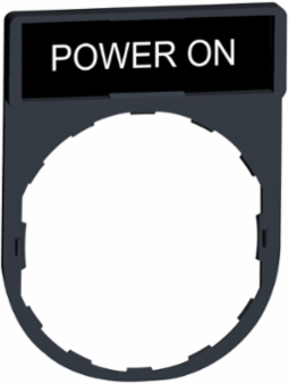

Schneider Electric ZBY2326 Harmony XB4 Legend Holder 30 x 40mm, Plastic, Marked POWER ON
- MPN: ZBY2326
- PPN: SCH-ZBY2326
CAD
$3.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZBY legend holder has black or red background and is marked with "POWER ON" lettering. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States |
|---|
Physical Attributes
| Legend Holder Size | 30 x 40 mm |
|---|
Important Information Attributes
| Customizable | 0, no |
|---|---|
| Accessory Destination | Ø 22 mm control or signalling unit, for standard head |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Material | plastic |
| Product Or Component Type | legend holder |
| Sustainable Packaging | No |
| Marking 1 Marking | power ON |
| Pep Code | ENVPEP2506048EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909985 |
| Device Composition | legend holder, marked legend |
|---|---|
| Accessory / Separate Part Destination | Ø 22 mm control or signalling unit, for standard head |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Marking | white power ON 1 black side, 1 red side |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| User Language | English |
| Marking 1 Background Color | 1 black side, 1 red side |
| Accessory / Separate Part Category | marking accessory |
| Package Weight(Lbs) | 0.900 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2506048EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506048EN |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | legend holder |
|---|
ETIM
| ETIM 8 | EC000624 |
|---|
| ETIM 9 | EC000624 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
