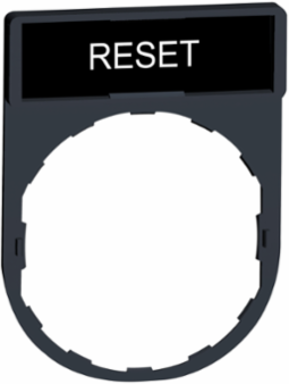

Schneider Electric ZBY2322 Harmony XB4 Legend Holder 30 x 40 mm Plastic, Marked RESET
- MPN: ZBY2322
- PPN: SCH-ZBY2322
CAD
$3.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZBY legend holder has black or white background and is marked with "RESET" lettering. It is compatible with Harmony XB4 and XB5 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
Features
- This premium 30mm by 40mm legend plate is precision-molded to fit perfectly with Schneider Electric s Harmony XB4 metal and XB5 plastic 22mm circular pushbuttons and pilot lights. It sits perfectly flush behind the operator head without modifying your existing layout, ensuring a professional, factory-clean look for your control panel arrays.
- Pre-engraved with white uppercase "RESET" text on a high-contrast black background, this legend plate guarantees excellent legibility even in low-light industrial environments. By providing clear, immediate visual confirmation of the button's function, it reduces operator entry errors and improves response times during critical machine startups.
- Manufactured from heavy-duty plastic, this legend plate resists scratching, cracking, and fading when exposed to industrial oils, solvents, and commercial cleaning agents. It handles frequent sanitization cycles seamlessly, making it an excellent match for harsh food processing, automotive, and material handling environments.
- This genuine Harmony series accessory complies with strict international industrial standards, including UL, and CSA regulations. It ensures your control panels remain fully compliant during safety audits and regulatory building inspections, giving engineers total peace of mind.
- Designed for rapid deployment, this lightweight 0.9 gram legend plate slips directly onto the 22mm operator body before the locking collar is secured. This simple, tool-free installation method drastically shortens panel building times and minimizes machine downtime during routine control face retrofits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Legend Holder Size
- 30 x 40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Accessory Destination
- Ø 22 mm control or signalling unit, for standard head
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Material
- plastic
- Product Or Component Type
- legend holder
- Sustainable Packaging
- No
- Marking 1 Marking
- RESET
- Pep Code
- ENVPEP2506048EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3926909985
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Device Compositionlegend holder, marked legend
Accessory / Separate Part DestinationØ 22 mm control or signalling unit, for standard head
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Markingwhite RESET black
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
User LanguageEnglish
Marking 1 Background Colorblack
Accessory / Separate Part Categorymarking accessory
Package Weight(Lbs)0.900 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2506048EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506048EN
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- legend holder
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
