Schneider Electric ZBY2306 Legend Holder 30 x 40 mm with Reverse Marking for Harmony XB4/XB5
- MPN: ZBY2306
- PPN: SCH-ZBY2306
CAD
$3.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

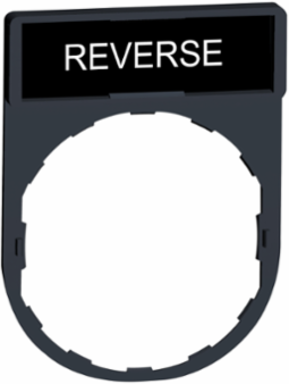

This Harmony ZBY legend holder has black or red background and is marked with "REVERSE" lettering. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Legend Holder Size
- 30 x 40 mm
Important Information Attributes
- Customizable
- 0, no
- Accessory / Separate Part Destination
- Ø 22 mm control or signalling unit, for standard head
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.019618573694546445
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.04851772347072339
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 2.61
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Material
- plastic
- Product Or Component Type
- legend holder
- Software Version
- v6.3.0.1-18
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Accessory Destination
- Ø 22 mm control or signalling unitfor standard head
- Marking 1 Background Color
- 1 black side, 1 red side
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- ZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights.This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with emergency stop or switching off unit. It provides clear and resilient symbol marking on the label with high contrast.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Accessory / Separate Part Category
- marking accessory
- Package Weight(Lbs)
- 0.900 g
- Warranty (In Months)
- 18
Device Compositionlegend holder, marked legend
Carbon Footprint Of The Distribution Phase [A4]0.005508526866382332, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00001143469128242425, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap2.02
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Markingwhite REVERSE 1 black side, 1 red side
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
User LanguageEnglish
Marking 1 MarkingREVERSE
Pep CodeENVPEP2506048EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.07365625872293459
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2506048EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506048EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- legend holder
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
