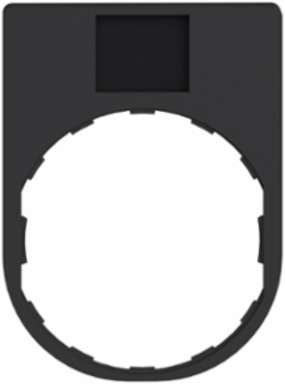

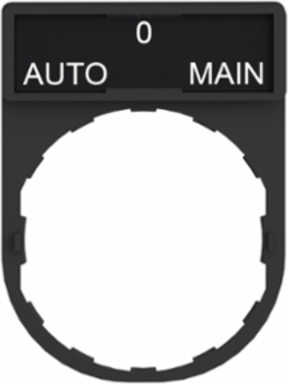

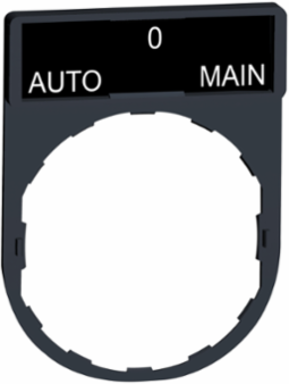

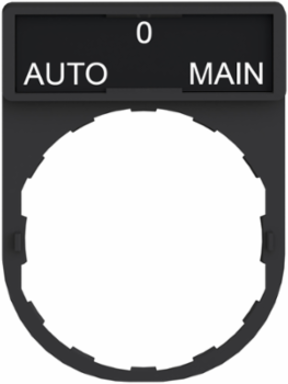

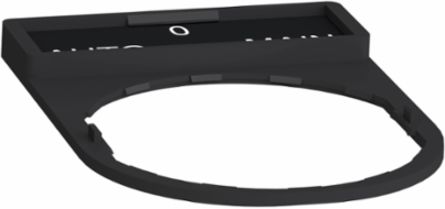

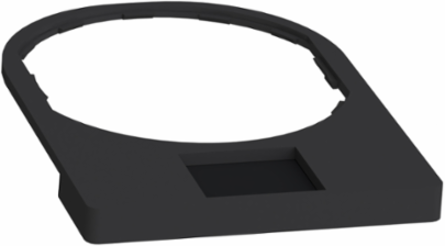

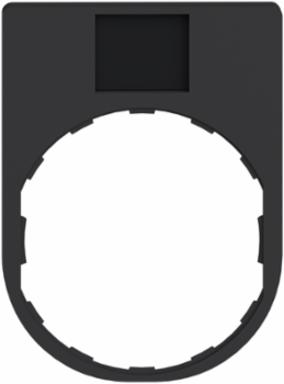

Schneider Electric ZBY2185 Harmony XB4 Legend Holder 30 x 40 mm, Plastic, Marked AUTO-O-MAIN

MPN: ZBY2185
PPN: SCH-ZBY2185
UNSPSC: 32151801

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$3.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZBY legend holder has black or red background and is marked with "AUTO-O-MAIN" lettering. It is compatible with Harmony XB4 and XB5 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	7.8 g

Physical Attributes

Legend Holder Size	30 x 40 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Accessory Destination	Ø 22 mm control or signalling unit, for standard head
Carbon Footprint Of The Distribution Phase A4	0.005508526866382332, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.00001143469128242425, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Marking	white AUTO-O-MAIN 1 black side, 1 red side
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
User Language	French
Marking 1 Background Color	1 black side, 1 red side
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Device Composition	legend holder, marked legend
Accessory / Separate Part Destination	Ø 22 mm control or signalling unit, for standard head
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.019618573694546445
Carbon Footprint Of The Manufacturing Phase A1 To A3	0 kg CO2 eq., 0.04851772347072339
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Material	plastic
Product Or Component Type	legend holder
Software Version	v6.3.0.1-18
Total Lifecycle Carbon Footprint	0.1 kg CO2 eq.
Marking 1 Marking	AUTO-O-MAIN
Database Version	2024-01
Accessory / Separate Part Category	marking accessory
Customs Code	3926909989
Functional Unit Description	ZBY circular legend is compatible with Harmony XB4 and XB5 push buttons and pilot lights.This circular legend provides clear labelling of your emergency stop devices units. It is supplied ready engraved with a marking relevant to machine operation and is compatible with emergency stop or switching off unit. It provides clear and resilient symbol marking on the label with high contrast.
Functional Unit Unit	unit

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.07365625872293459
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506048EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506048EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
