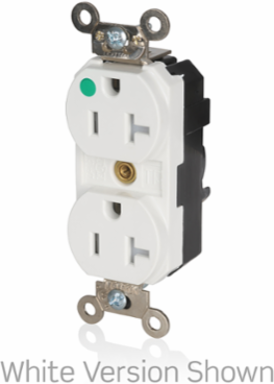

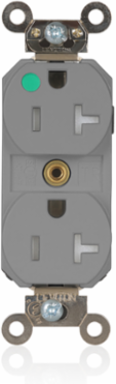

Leviton MT830-ILG Lev-Lok Duplex Receptacle 20 Amp 125 Volt Extra Heavy-Duty Hospital Grade
Leviton MT830-ILG Lev-Lok Duplex Receptacle 20 Amp 125 Volt Extra Heavy-Duty Hospital Grade
- MPN: MT830-ILG
- UPC: 078477553121
- PPN: LEV-MT830-ILG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$49.16/ EA
Description

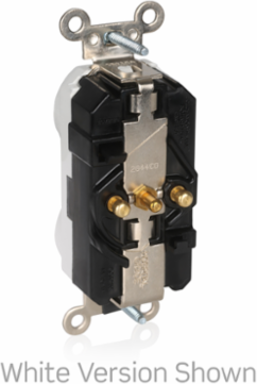

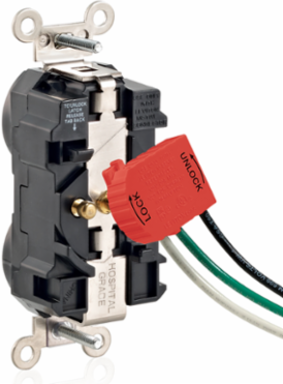

Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Illuminated, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Compliant
- Warranty
- 10-Year Limited
CSA152105
NOM057
UL 498 and Fed Spec WD496E13399
Material Specifications
- Body Material
- Nylon
- Ground Clips
- Brass
- Locking Pins
- Solid Brass
- Strap Material
- Nickel Plated Brass
Face MaterialNylon
Line Contacts0.040" Brass
Shutter MechanismDelrin® Acetal
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498 (black, white & green)
- Termination
- Modular
Product IDMarkings are permanently marked on device
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Grade
- Extra Heavy-Duty Hospital Grade
ColorGray
FeatureTamper-Resistant|Illuminated|Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498

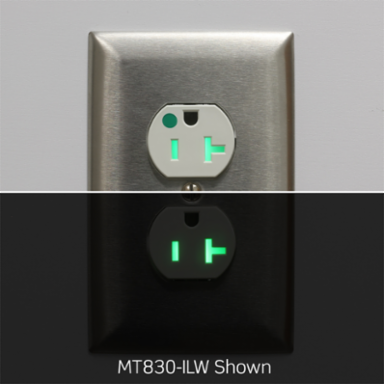

- Illumination
- 100,000 HR Green LED's
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
