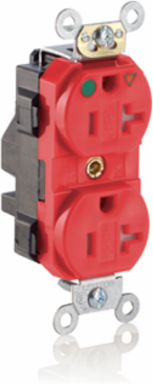

Leviton MT830-IGR Lev-Lok Heavy-Duty Hospital Grade Duplex Receptacle, 20 Amp, NEMA 5-20R
- MPN: MT830-IGR
- UPC: 078477508053
- PPN: LEV-MT830-IGR
CAD
$41.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lev-Lok Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Compliant
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL 498File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Isolated Ground System
- Brass
- Locking Pins
- Solid Brass
- Strap Material
- Galvanized Steel
ColorRed
Ground ClipsBrass
Line Contacts0.040” Thick Solid Brass
Shutter MechanismDelrin® Acetal
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498 (black, white & green)
- Termination
- Modular
Product IDMarkings are permanently marked on device
Product Features
- Brand
- Lev-Lok
- Feature
- Tamper-Resistant|Smooth Face
- Grade
- Heavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
FunctionIsolated Ground
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
