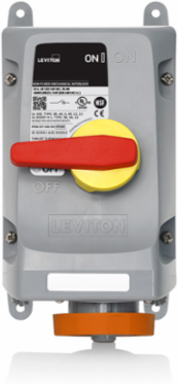

Leviton 420MI12WLEV LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange

LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
LEV Series IEC Pin & Sleeve Mechanical Interlock 20A 125/250V 3P 4W IP66/IP67/IP68/IP69K Orange
  • MPN: 420MI12WLEV
  • UPC: 078477675984
  • PPN: LEV-420MI12WLEV

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1550.13/ EA

Description

20 Amp, 125/250 Volt, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused - Orange

Features

  • LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

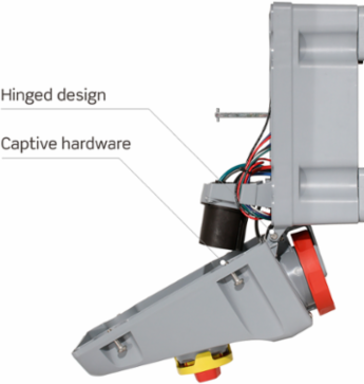

  • Bottom hinged cover design makes installation and maintenance quicker and easier
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
  • NSF certified sanitary design trusted for use in food & beverage facilities

Specifications

Material Specifications

Contact Material
Nickel-Plated Brass
Handle Material
PBT+PC with TPE Overmold
Housing Screws
303 Stainless Steel
Gasket MaterialChloroprene
Housing MaterialPBT+PC

Mechanical Specifications

Cold Impact
5 ft-lb impact at -31°F for 3 hrs per UL746C
Mold Stress Relief
70°C for 7 hours without deformation
Crush Test100 lbs for 1 minute per surface

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Color
Orange
Device Type
Non-Fused Mechanical Interlock
ConfigurationNorth American
SeriesLEV Series

Warranty

Warranty
5-Year Limited

Environmental Specifications

Flammability
Rated V-0 per UL 94
IP Rating
IP66, IP67, IP68, IP69, IP69K
NSF
14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance
UV stabilized F1 rated enclosure
Gasket Aging70°C for 168 hr per UL50E
NEMA Rating3R, 4X, 12
Operating Temperature-40°C to 75°C

Electrical Specifications

Amperage
20 A
Dielectric Voltage
2200V for 1 minute
Horsepower Rating
10 HP
SCCR
10kA
Wire
4
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance6,000 cycles under load
Pole3
Voltage125/250 VAC

Standards & Certifications

CSA
C22.2 No 94.1-07
UL
UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746
IEC RatingIEC 60309-1, 60309-2, 60309-4
