Leviton 430MI7WLEV LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock - https://media.province-electric.com/476/csv_leviton/medium/72d2589a79ca770502acd7d64f8dccf021ccf40e-medium.png

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock - https://media.province-electric.com/476/csv_leviton/medium/b0184e2a7311cdc4e3bcdacd3eda2d41ba0f4bfe-medium.png

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock - https://media.province-electric.com/476/csv_leviton/medium/3a8544c0d7809ffdfbfac0a2e1a5b6caa23b393d-medium.png

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock - https://media.province-electric.com/476/csv_leviton/medium/78cc49849fa74bcf615e4f3af7f7b39824d45a24-medium.png

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock - https://media.province-electric.com/476/csv_leviton/medium/106111ef769c990b6ca760716bbac0cc5cdc2e7b-medium.png

LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock

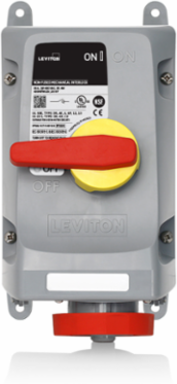

Leviton 430MI7WLEV LEV Series 30A 480V 3-Phase IEC Pin & Sleeve Mechanical Interlock

MPN: 430MI7WLEV
UPC: 078477251447
PPN: LEV-430MI7WLEV

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1805.41/ EA

Qty:

Loading add to cart quantity...

Description

30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight, Non-Fused - Red

Features

LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

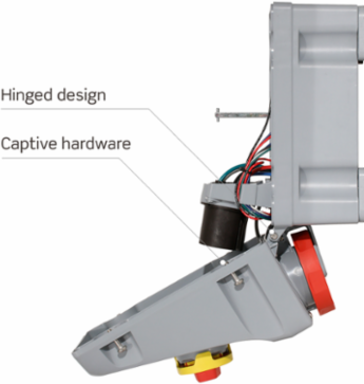

Bottom hinged cover design makes installation and maintenance quicker and easier
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities

Specifications

Material Specifications

Contact Material: Nickel-Plated copper alloy

Handle Material: PBT+PC with TPE Overmold

Housing Screws: 303 Stainless Steel

Gasket MaterialChloroprene

Housing MaterialPBT+PC

Mechanical Specifications

Cold Impact: 5 ft-lb impact at -31°C for 3 hrs per UL746C

Mold Stress Relief: 70°C for 7 hours without deformation

Crush Test100 lbs

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Product Features

Color: Red

Device Type: Non-Fused Mechanical Interlock

ConfigurationNorth American

SeriesLEV Series

Warranty

Warranty: 5-Year Limited

Electrical Specifications

Amperage: 30 A

Dielectric Voltage: 2200V for 1 minute

Horsepower Rating: 7.5 HP

Pole: 3

Voltage: 480 VAC

Current InterruptingCertified for current interrupting at full-rated current and voltage

Endurance6,000 cycles under load

Phase3-Phase

SCCR10kA

Wire4

Standards & Certifications

CE Marking: CE Certification

IEC Rating: IEC 60309-1, 60309-2, 60309-4

CSAC22.2 No 94.1-07

ULUL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746

Environmental Ratings

Flammability: Rated V-0 per UL 94

IP Rating: IP66, IP67, IP68, IP69K

NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment

UV Resistance: UV stabilized F1 rated enclosure

Gasket Aging70°C for 168 hr per UL50E

NEMA Rating3R, 4X, 12

Operating Temperature-40°C to 75°C

Downloads
