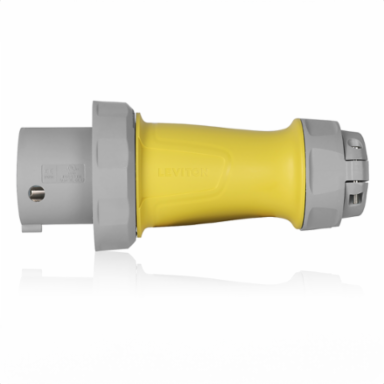

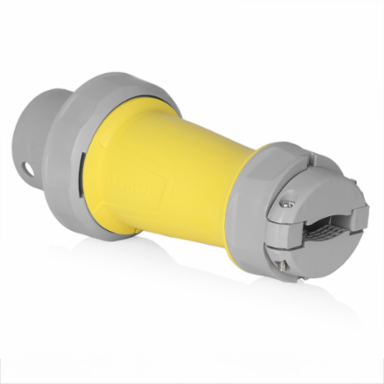

Leviton M5100P9WLEV LEV Series IEC Pin & Sleeve Plug, Marine Grade
- MPN: M5100P9WLEV
- UPC: 078477015971
- PPN: LEV-M5100P9WLEV
CAD
$935.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Marine Grade 100 Amp, 120/208 Volt 3-Phase, 4P, 5W, North American Pin & Sleeve Plug, ABYC Certified, IEC 60309 Industrial Grade, IP66/67/68, & IP69K Watertight - Yellow
Features

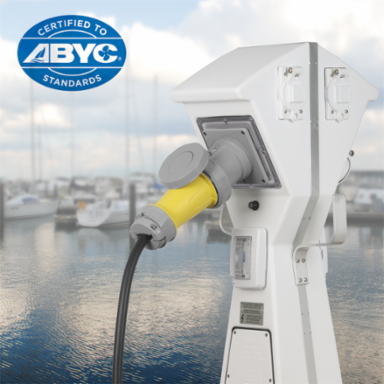

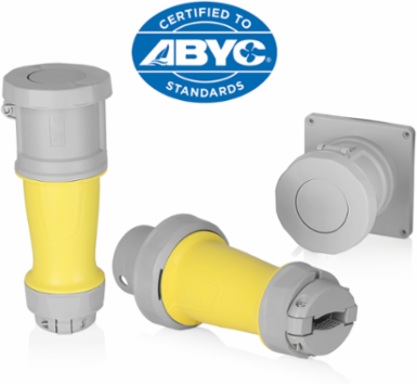

- Industry-exclusive - the only manufacturer of ABYC certified Pin & Sleeve devices in the market
- Marine grade - withstands harsh, corrosive marine environments
- Superior watertight ratings - including IP68 for long-term submersion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ABYC Certified | Yes |
|---|---|
| CSA | CSA C22.2 No 182.1-13 (Harmonized with UL 1682) |
| RoHS | RoHS compliant components |
| CE | CE certification |
|---|---|
| IEC Rating | 60309-1, 60309-2 |
| UL | UL 1686 C2, UL 1682 |
Material Specifications
| Assembly Screws | 303 Stainless Steel |
|---|---|
| Grommet/Gasket | Buna-N |
| Locking Ring | Impact Modified Nylon |
| Contact Carrier | Glass filled Nylon |
|---|---|
| Housing | Impact Modified Nylon |
| Terminal Screws | 303 Stainless Steel |
Mechanical Specifications
| Cable Clamp Screw Torque | 15 in-lb |
|---|---|
| Crush Test | 250 lbs for 1 min after -25°C for 6 hrs |
| Impact | Drop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours |
| Conductor Range | #6 AWG to #1AWG |
|---|---|
| Hardware Head Type | Hex style socket screws for terminals, combination screws for all others |
| Screw Terminal Torque | 50 in-lb |
Product Features

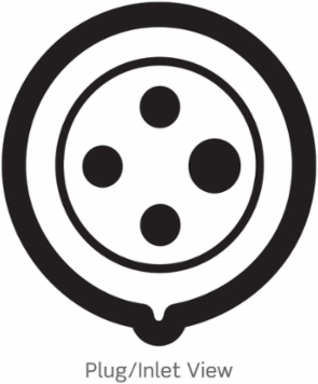

| Clock Position | 9 o'clock |
|---|---|
| Configuration | North American |
| Grade | Marine |
| Product Markings | Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP on label |
| Color | Yellow |
|---|---|
| Device Type | Plug |
| Lockout/Tagout Provision | Lockout hole on housing |
| Series | LEV Series |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Corrosion Resistance | Salt fog tested |
|---|---|
| IP Rating | IP66, IP67, IP68, IP69K |
| Operating Temperature | -35C to +66C |
| Flammability | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
|---|---|
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
| UV Resistance | UV stabilized F1 rated housings |
Electrical Specifications
| Amperage | 100 A |
|---|---|
| Dielectric Voltage | 3000V for 1 min. |
| Horsepower Rating | 7.5 HP |
| Overload UL20 Test | 50 cycles |
| Pole | 4 |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Wire | 5 |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
|---|---|
| Endurance | 250 cycles rated V and I load, 250 cycles no-load (100A) |
| Max. Voltage | 600V |
| Phase | 3-Phase |
| SCCR | 200kA |
| Voltage | 120/208 VAC |
