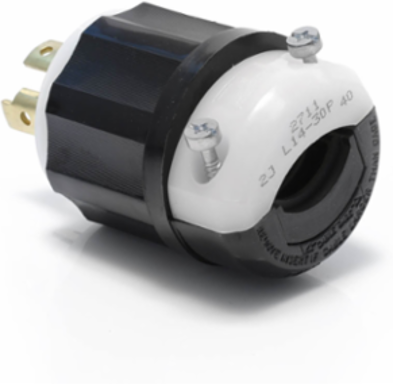

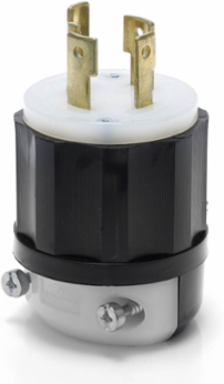

Leviton 2711 Locking Plug 30 Amp 125/250 Volt NEMA L14-30P Industrial Grade Black/White
- MPN: 2711
- UPC: 078477808351
- PPN: LEV-2711
CAD
$44.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

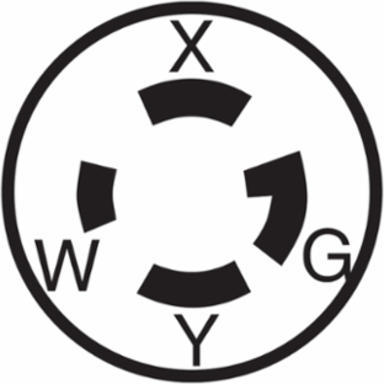

30 Amp, 125/250 Volt, NEMA L14-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Ideal for generators and transfer switches
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Pole
- 3
- Torque Range
- 10-14 in-lbs
- Cord Range
- 0.560 to 1.050 in
- Material
- Impact Modified Nylon, Solid Brass, Steel Zinc Plated, Nylon, Thermoplastic
- Flammability Rating
- HB or better UL94
- UL498
- File E13393
- CSA C22.2 No. 42
- File LR-406
- UL Fed Spec WC-596
- File E13393
- Dielectric Voltage
- Withstands 2000V per UL498
- Terminal Screws
- Brass
- Terminal Accom.
- 14-8 AWG
- Clamp Insert
- Nylon
- At Rated Voltage
- 2 HP L-L / 2 HP L-N
- Environment
- Dry
- Country of Origin
- Mexico
- Brand
- Black and White
Voltage125/250 VAC
Wire4
Operating Temperature-40 C to 60 C
NEMAWD-6
GroundingYes
RoHS CompliantTrue
NOM057
ANSIC-73
Current InterruptingCertified for current interrupting at full rated current
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Assembly ScrewsSteel, Zinc Plated
Cord-ClampNylon
Wire ModuleNylon
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Device TypeLocking Plug
ColorBlack-White
