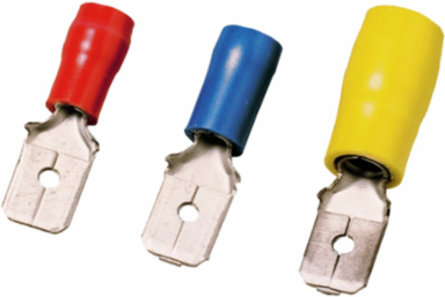

Weidmuller 9200600000 LIF 6M638 R
- MPN: 9200600000
- PPN: WDM-9200600000
CAD
$0.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section, max.
- 6 mm²
- Dimension
- 6.3 x 0.8 mm
- Insulation
- Available
- Plastic collar diameter (D)
- 6.8 mm
- Plug-in density (d3)
- 0.8 mm
Conductor cross-section, min.4 mm²
Dimension (flat blade connector)6.3 x 0.8 mm
Material/plasticPVC
Plastic collar length (b)13 mm
Plug-in width (d2)6.3 mm
Approvals
- Approvals
- GOSTME25
ROHSConform
Classifications
- ETIM 6.0
- EC000516
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC000516
eClass 9.127-40-02-90
UNSPSC23-17-16-04
Dimensions And Weights
- Width
- 23.8 mm
- Depth
- 8.2 mm
- Net weight
- 1.62 g
Width (inches)0.937 inch
Depth (inches)0.323 inch
