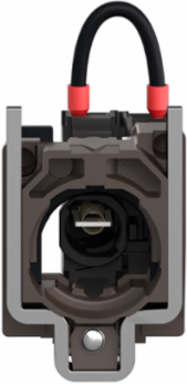

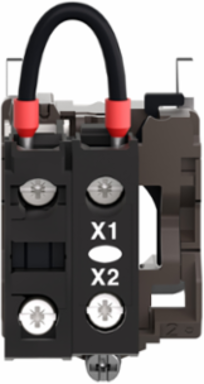

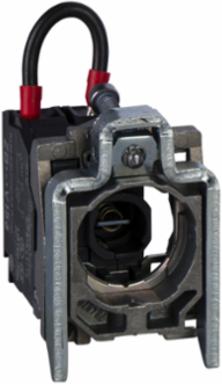

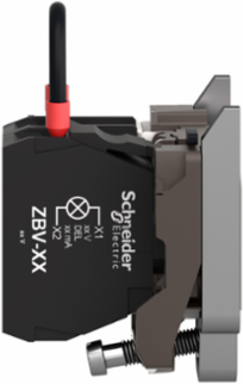

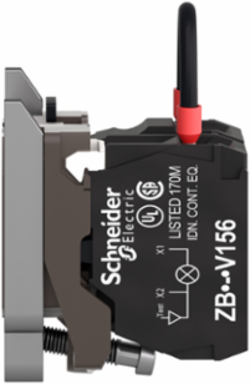

Schneider Electric ZB4BV156 Harmony XB4 Light Block for BA9s Bulb, Metal, 250V, 30mm x 47mm x 37mm
- MPN: ZB4BV156
- PPN: SCH-ZB4BV156
CAD
$54.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, complete light body with 3-terminal “test” function operates with BA9s base fitting. It has a metal body and is compatible with Harmony XB4 pilot lights. It is supplied without bulb (incandescent, neon or LED) 2.4 W maxi, not included. It is supplied with 250V AC/DC maxi. It is easily installed and replaced on compatible pilot light via clip together assembly and connected with simple screw-clamp connections. It weighs 62g and its dimensions are, 30mm wide, 47mm high, 37mm deep. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Light Block Supply
- direct <2.4 W
- Fixing Collar Material
- zamak
- Sale Per Indivisible Quantity
- 1
- [Us] Rated Supply Voltage
- <= 250 V
Light Sourcebulb not included
Product Or Component Typecomplete body/light block assembly
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
Device Short NameZB4
Bulb BaseBA 9s
Complementary
- Terminals Description Iso N°1
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Cad Overall Depth
- 37 mm
Net Weight0.062 kg
Cad Overall Height47 mm
Signalling Typesteady
Cad Overall Width30 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- GL || BV || UL listed || DNV || CSA || LROS (Lloyds register of shipping)
- Standards
- CSA C22.2 No 14 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class I IEC 60536
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
