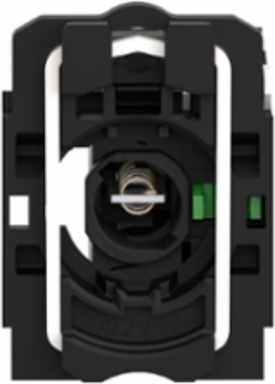

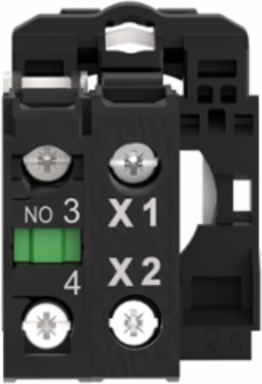

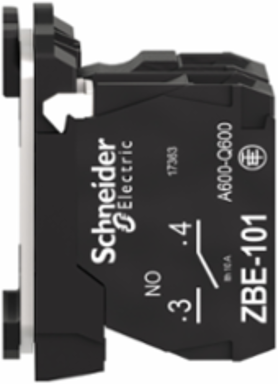

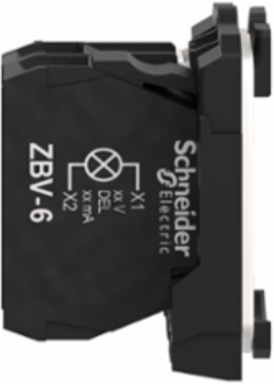

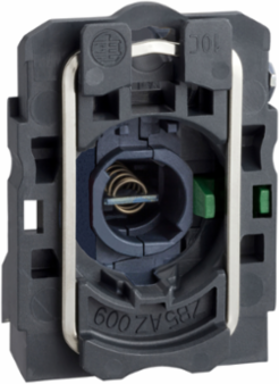

Schneider Electric ZB5AW061 Harmony XB5 Light Block with Body Fixing Collar, BA9s Base, 1 NO, IP20

  • MPN: ZB5AW061
  • PPN: SCH-ZB5AW061
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $53.31

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony XB5
    Light Block Supply
    direct <2.4 W
    Fixing Collar Material
    plastic
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Sale Per Indivisible Quantity
    1
    Device Short Name
    ZB5
    Light Sourcebulb not included
    Product Or Component Typecomplete body/contact assembly and light block
    Head Typestandard
    Contacts Type And Composition1 NO
    Contact Operationslow-break
    Bulb BaseBA 9s

    Complementary

    Contacts Usage
    standard
    Short-Circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Operating Travel
    2.6 mm NO changing electrical state) || 4.3 mm total travel)
    Positive Opening
    without
    Net Weight
    0.031 kg
    Cad Overall Height
    42 mm
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Signalling Type
    steady
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Cad Overall Width
    30 mm
    Shape Of Screw Head
    cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    Terminals Description Iso N°1(13-14)NO
    Operating Force2.3 N NO changing electrical state
    Contacts Materialsilver alloy (Ag/Ni)
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Device Presentationbasic sub-assemblies
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Operating Torque0.05 N.m NO changing electrical state
    Mechanical Durability5000000 cycles
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Cad Overall Depth32 mm
    [Us] Rated Supply Voltage<= 250 V

    Environment

    Product Certifications
    BV || CSA || GL || UL listed || LROS (Lloyds register of shipping) || DNV
    Standards
    UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
    Vibration Resistance
    5 gn 2-500 Hz)IEC 60068-2-6
    Electrical Shock Protection Class
    class II IEC 60536
    Ambient Air Temperature For Operation-40-70 °C
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ambient Air Temperature For Storage-40-70 °C
    Protective TreatmentTH

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1710010EN
