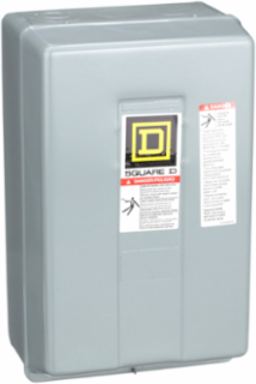

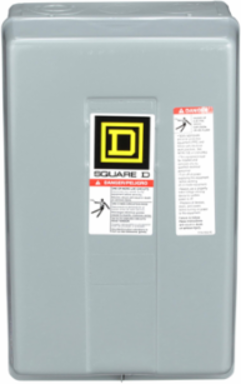

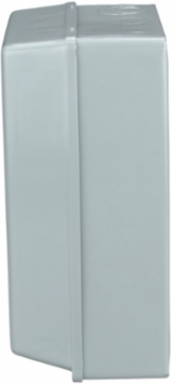

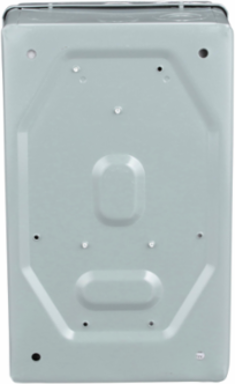

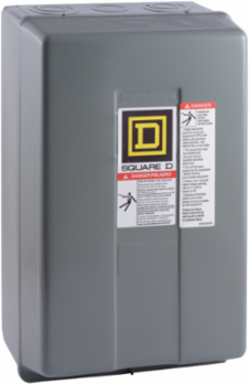

Square D 8903LG60V02 Lighting Contactor, 30A, 6 Pole, 600V, NEMA 1 Enclosure
- MPN: 8903LG60V02
- UPC: 785901851400
- PPN: SCH-8903LG60V02
CAD
$1667.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 8903L
- Product Or Component Type
- Electrically Held Lighting Contactor
Control Circuitseparate control circuit
Complementary
- Local Signalling
- no indicator
- Control Type
- no control units
- Hold-In Power Consumption In Va
- 30-30 VA 60 Hz || 30-30 VA 50 Hz
- Width
- 198 mm
- [In] Rated Current
- 20-20 A tungsten || 30-30 A fluorescent
- Inrush Power In Va
- 150-150 VA 60 Hz || 140-140 VA 50 Hz
Height322 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Depth153 mm
Net Weight4.6 kg
Poles Description6P 6 NO
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
