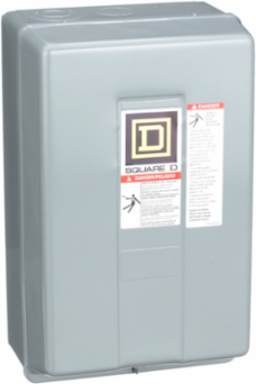

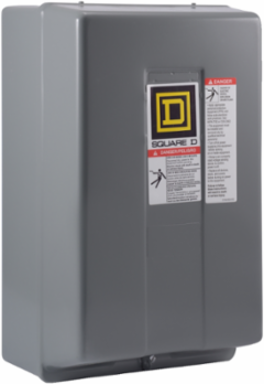

Square D 8903LXG60V02R6 Type L Mechanically Held Lighting Contactor 30A 6 Pole 600V NEMA 1
- MPN: 8903LXG60V02R6
- UPC: 785901023326
- PPN: SCH-8903LXG60V02R6
CAD
$3409.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 6 pole device has 6 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. This lighting contactor is supplied with an additional two pole relay. 8903L lighting contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 153 mm
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 20-20 A tungsten, 30-30 A fluorescent
Control Circuitseparate control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 25-25 VA 60 Hz, 150-150 VA 50 Hz, 140-140 VA 50/60 Hz
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 7 kg CO2 eq., 7.358771916644838
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 40 kg CO2 eq., 39.750255641617805
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Circuit
- separate control circuit
- Electrical Connection
- screw-clamp terminals
- Local Signalling
- no indicator
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 8903LX
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 259 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 90
- Width Nominal
- 198 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]4.334369481225538, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7095291631610655, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]207 kg CO2 eq., 207.26729188154448
Local Publishable Date2025-11-19
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Additional Included Device2P relay (1 NO + 1 NC)
Control Typeno control units
Energy Efficiency OptimizedFalse
Number Of Poles6P 6 NO
Product Or Component TypeMechanically Held Lighting Contactor
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP1407018EN
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal322 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)5.221 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1407018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Carbon Footprint259.4202180841937
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Mechanically Held Lighting Contactor
Range Of Product8903LX
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
