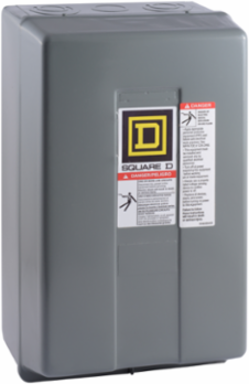

Square D 8903LG20V04 Electrically Held Lighting Contactor 30A 2 Pole 277V NEMA 1
Square D 8903LG20V04 Electrically Held Lighting Contactor 30A 2 Pole 277V NEMA 1
- MPN: 8903LG20V04
- UPC: 785901625643
- PPN: SCH-8903LG20V04
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$710.52/ EA
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 2 pole device has 2 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Local Signalling
- no indicator
- Control Type
- no control units
- Hold-In Power Consumption In Va
- 30-30 VA 60 Hz
- Width
- 198 mm
- [In] Rated Current
- 20-20 A tungsten || 30-30 A fluorescent
- Poles Description
- 2P 2 NO
Height322 mm
[Uc] Control Circuit Voltage277 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Depth153 mm
Inrush Power In Va150-150 VA 60 Hz
Specifications
- Range Of Product
- 8903L
- Product Or Component Type
- Electrically Held Lighting Contactor
Control Circuitseparate control circuit
