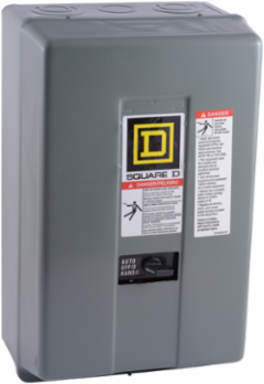

Square D 8903LG40V04C Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1, +option

Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1, +option

Square D 8903LG40V04C Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1, +option

MPN: 8903LG40V04C
UPC: 785901022794
PPN: SCH-8903LG40V04C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1537.58/ EA

Loading add to cart quantity...

Description

Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1, +option

Specifications

Environment

Product Certifications: UL listed || CSA

Nema Degree Of ProtectionNEMA 1 painted sheet steel surface

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407018EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Halogen Content Performance: Halogen free plastic parts product

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Reach Free Of SvhcYes

Complementary

Local Signalling: no indicator

Control Type: selector switch HAND-OFF-AUTO)

Hold-In Power Consumption In Va: 30-30 VA 60 Hz

Width: 198 mm

[In] Rated Current: 20-20 A tungsten || 30-30 A fluorescent

Poles Description: 4P 4 NO

Height322 mm

[Uc] Control Circuit Voltage277 V AC 60 Hz

Electrical Connectionscrew-clamp terminals

Depth153 mm

Inrush Power In Va150-150 VA 60 Hz

Specifications

Range Of Product: 8903L

Product Or Component Type: Electrically Held Lighting Contactor

Control Circuitseparate control circuit
