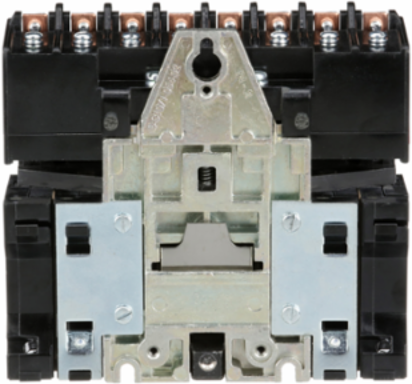

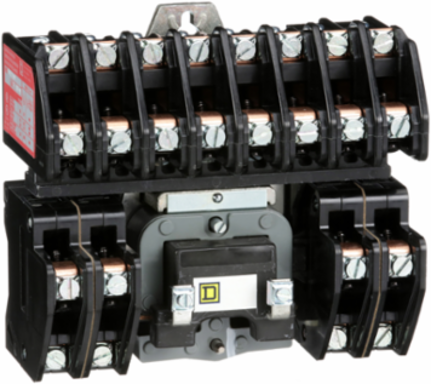

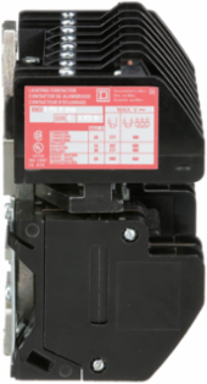

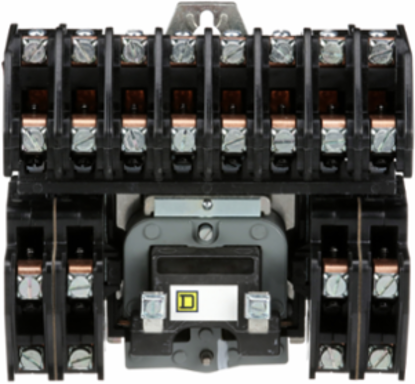

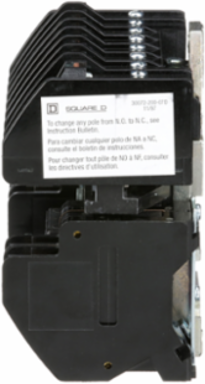

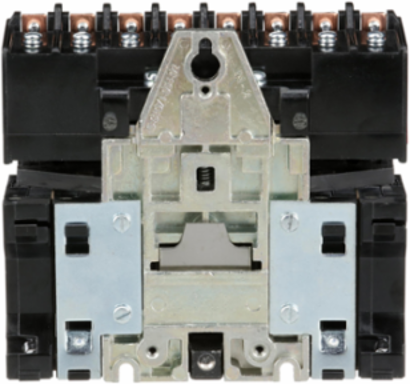

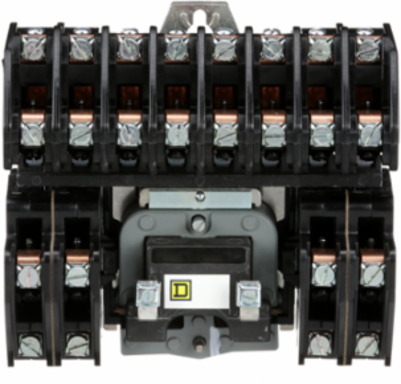

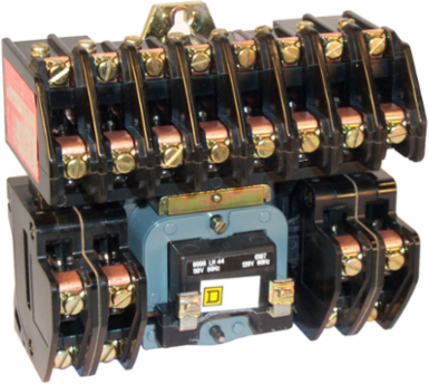

Square D 8903LO1200V01 Electrically Held Lighting Contactor, 30A, 12 Pole, 24V AC 60Hz
- MPN: 8903LO1200V01
- UPC: 785901765370
- PPN: SCH-8903LO1200V01
CAD
$2608.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric 8903LO1200V01 Electrically Held Lighting Contactor is engineered to enhance your automation and control systems, featuring a robust design suitable for a variety of applications. With a current rating of 30A and a 12 pole configuration, it efficiently manages lighting loads at a voltage of 24V AC and a frequency of 60Hz. This contactor not only ensures reliable performance but also contributes to operational efficiency by allowing for precise control of lighting circuits in both commercial and industrial environments. Its dependable construction makes it an essential component for modern lighting control systems.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 20 A tungsten, 30 A fluorescent
- Inrush Power
- 180 VA 60 Hz
- Number of Poles
- 12P 12 NO
- Width
- 143 mm (5.63 in)
- Depth
- 79 mm (3.11 in)
- Enclosure Type
- Not rated (open device)
- Material
- Halogen free plastic parts
- Toxic Heavy Metal Free
- Yes
- RoHS Compliant
- Yes
- REACH Compliant
- Free of SVHC above threshold
- NEMA Degree of Protection
- Not rated (open device)
- Country of Origin
- Mexico
Control Circuit Voltage24 V AC 60 Hz
Hold-in Power Consumption35 VA 60 Hz
Voltage600 V
Height127 mm (5.00 in)
Electrical ConnectionScrew-clamp terminals
Poles Description12P 12 NO
PVC FreeYes
Mercury FreeYes
China RoHSPro-active declaration (out of legal scope)
Product CertificationsUL Listed, CSA
Warranty18 months
