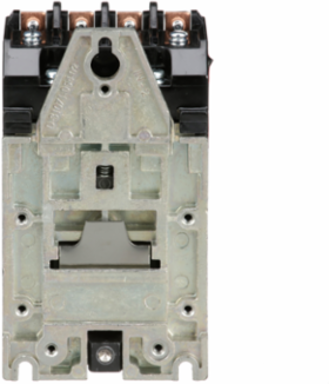

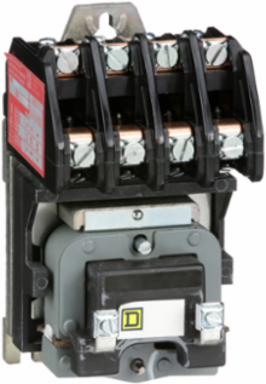

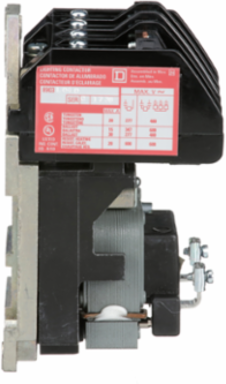

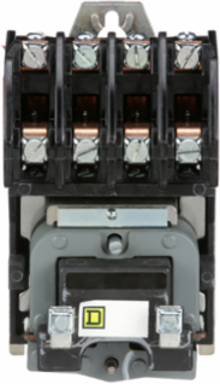

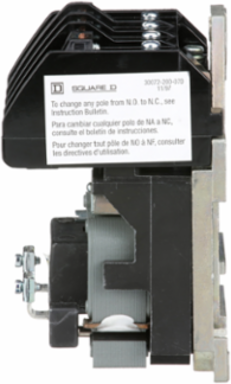

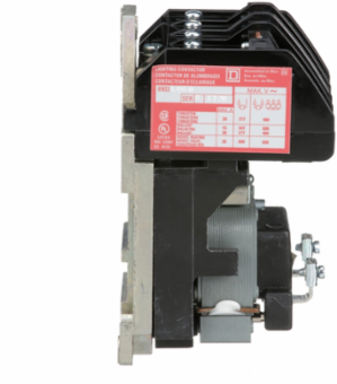

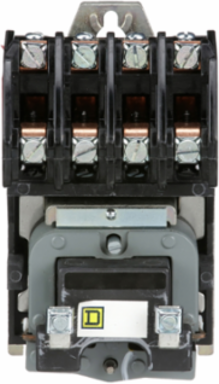

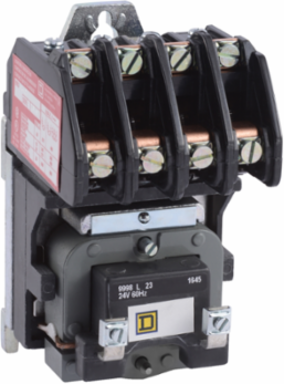

Square D 8903LO40V01 Electrically Held Lighting Contactor 4 Pole 30A 600V 24V AC
- MPN: 8903LO40V01
- UPC: 785901022978
- PPN: SCH-8903LO40V01
CAD
$995.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This electrically held lighting contactor from Schneider Electric is engineered for optimal performance in automation and control applications. With its robust 4-pole design, it is capable of handling loads up to 30A at 600V, making it a reliable choice for demanding lighting systems. The 24V AC control voltage enables efficient operation, providing excellent functionality while ensuring safety and durability in varied environments. Ideal for industrial and commercial use, this lighting contactor simplifies the management and control of lighting circuits, enhancing both operational efficiency and reliability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 79 mm
ComplianceTAA Compliant
Complementary Attributes
- Control Circuit
- separate control circuit
Line Rated Current20-20 A tungsten30-30 A fluorescent
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.6293316099677138
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 8.801244114481934
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- no control units
- Energy Efficiency Optimized
- False
- Local Signalling
- no indicator
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 8903L
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 444 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 90
- Width Nominal
- 73 mm
- Hold-in Power Consumption In Va
- 30-30 VA 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.9596880138472941, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1570993511998069, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]433 kg CO2 eq., 432.9107817063548
Local Publishable Date2025-11-19
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Control Circuitseparate control circuit
Electrical Connectionscrew-clamp terminals
Inrush Power In Va150-150 VA 60 Hz
Number Of Poles4P 4 NO
Product Or Component TypeElectrically Held Lighting Contactor
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP1407018EN
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal127 mm
[Uc] Control Circuit Voltage24 V AC 60 Hz
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.156 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1407018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Carbon Footprint444.4581447958515
Eu Rohs DirectiveCompliant
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Electrically Held Lighting Contactor
Range Of Product8903L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
