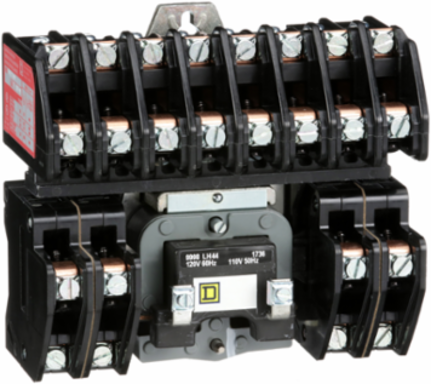

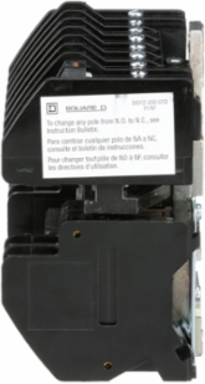

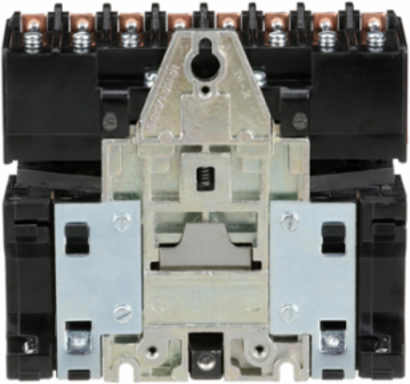

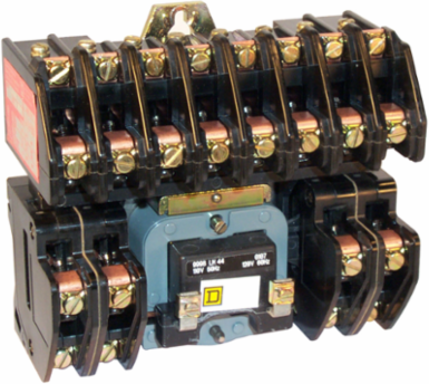

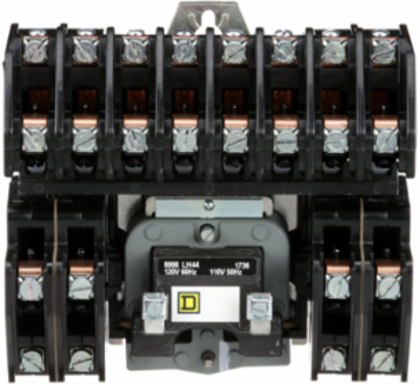

Square D 8903LO1200V02 Electromechanical Lighting Contactor, 30A, 12 Poles, 600V
- MPN: 8903LO1200V02
- UPC: 785901851813
- PPN: SCH-8903LO1200V02
CAD
$2608.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Features
- Engineered for heavy-duty performance, this 30-Amp lighting contactor safely manages up to 30A for fluorescent/ballast loads and 20A for high-inrush tungsten/incandescent fixtures. This ensures long-term reliability and prevents contact welding under intense starting currents in large facilities, commercial warehouses, and parking garages.
- Featuring a high-density 12-pole layout with 12 Normally Open (NO) contacts, this compact device lets you control up to a dozen separate lighting branches or zones simultaneously.
- This electrically held contactor is equipped with a standard 110V AC (50Hz) / 120V AC (60Hz) interchangeable control coil, making it directly compatible with standard North American building automation and control circuits. The electrically held mechanism ensures silent, energy-efficient operation for continuous duty applications where lighting circuits must remain energized for extended shifts.
- Built with rugged, industrial-grade screw-clamp terminals, the unit ensures a vibration-resistant and high-torque mechanical connection for secure field wiring. This durable design minimizes voltage drops and eliminates the common maintenance pain point of loose connections over years of continuous system operation.
- Fully certified to strict UL Listed and CSA standards, this 600V-rated maximum-voltage contactor is completely code-compliant for commercial and industrial renovations or new construction across Canada. Choosing this authentic Square D Class 8903 Type L component guarantees that your infrastructure passes rigorous electrical inspections while ensuring maximum workplace safety.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 8903L
- Control Circuit
- separate control circuit
Product Or Component TypeElectrically Held Lighting Contactor
Complementary
- Height
- 127 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Local Signalling
- no indicator
- Electrical Connection
- screw-clamp terminals
- Depth
- 79 mm
- Poles Description
- 12P 12 NO
Control Typeno control units
Inrush Power In Va180-180 VA 60 Hz || 170-170 VA 50 Hz
Hold-In Power Consumption In Va35-35 VA 60 Hz || 35-35 VA 50 Hz
Width143 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
