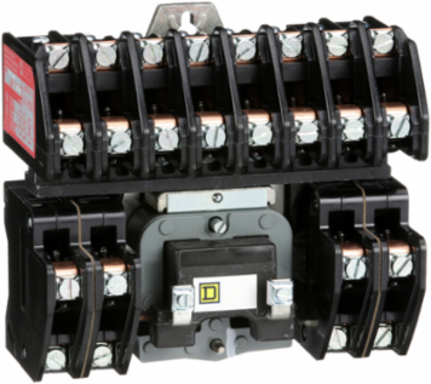

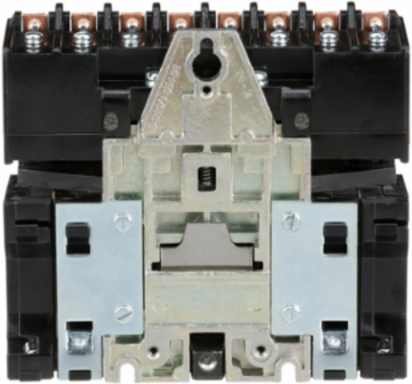

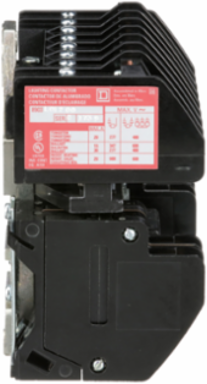

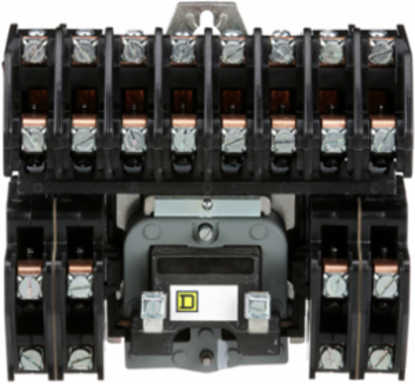

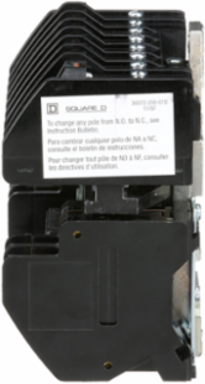

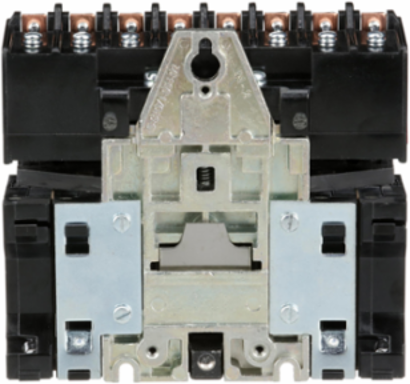

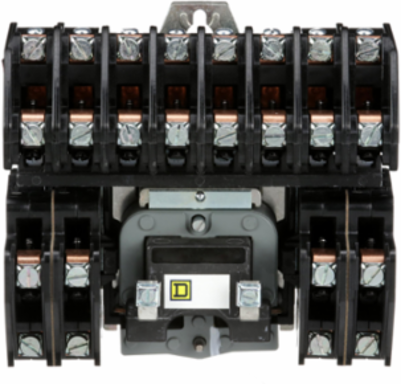

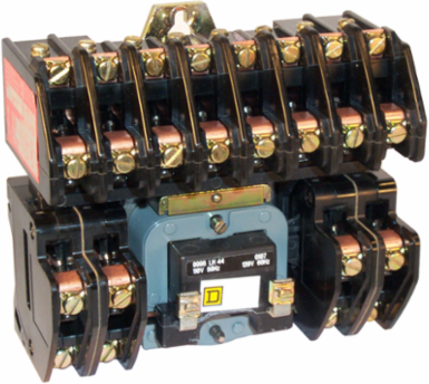

Square D 8903LO0012V02 Lighting Contactor, 12 Pole, 30A, 600V, 110/120VAC, Open Style
- MPN: 8903LO0012V02
- UPC: 785901039693
- PPN: SCH-8903LO0012V02
- UNSPSC: 39121529
CAD
$2529.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally closed contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
Features
- Electrically and mechanically held
- Rugged design
- Field convertible
- Silent operation
- This product is TAA compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Weight | 1969 g |
| Compliance | TAA Compliant |
|---|---|
| Depth | 79 mm |
Complementary Attributes
| Control Circuit | separate control circuit |
|---|---|
| Uc Control Circuit Voltage | 110 V AC 50 Hz120 V AC 60 Hz |
| Line Rated Current | 20-20 A tungsten30-30 A fluorescent |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase A4 | 1.634624307322943, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2675853135920586, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 709 kg CO2 eq., 709.2671708817472 |
| Local Publishable Date | 2025-11-19 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Local Signalling | no indicator |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | 8903L |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 729 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 143 mm |
| Customs Code | 8536490065 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Hold In Power Consumption In Va | 35-35 VA 60 Hz, 35-35 VA 50 Hz |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.7752196713031387 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 15 kg CO2 eq., 14.991046419909107 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | screw-clamp terminals |
| Inrush Power In Va | 180-180 VA 60 Hz170-170 VA 50 Hz |
| Number Of Poles | 12P 12 NC |
| Product Or Component Type | Electrically Held Lighting Contactor |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 127 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 90 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407018EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1407018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 728.9356465938745 |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | Electrically Held Lighting Contactor |
|---|
| Range Of Product | 8903L |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
