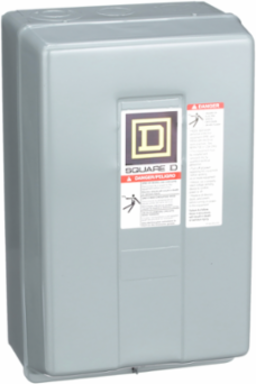

Square D 8903LXG1200V04 Mechanically Held 12-Pole Lighting Contactor, 30A, 277V AC 60Hz
Square D 8903LXG1200V04 Mechanically Held 12-Pole Lighting Contactor, 30A, 277V AC 60Hz
- MPN: 8903LXG1200V04
- UPC: 785901057215
- PPN: SCH-8903LXG1200V04
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3339.65/ EA
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 440/480 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Height
- 322 mm
- [Uc] Control Circuit Voltage
- 277 V AC 60 Hz
- Additional Included Device
- none
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Poles Description
- 12P 12 NO
Control Typeno control units
Inrush Power In Va180-180 VA 60 Hz || 25-25 VA 50/60 Hz
Local Signallingno indicator
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Specifications
- Range Of Product
- 8903LX
- Control Circuit
- separate control circuit
Product Or Component TypeMechanically Held Lighting Contactor
